New

medilogAR Holter

Brands: SCHILLER

~~$0.00~~

Shipped From Abroad

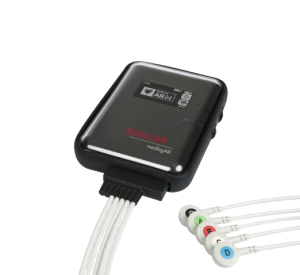

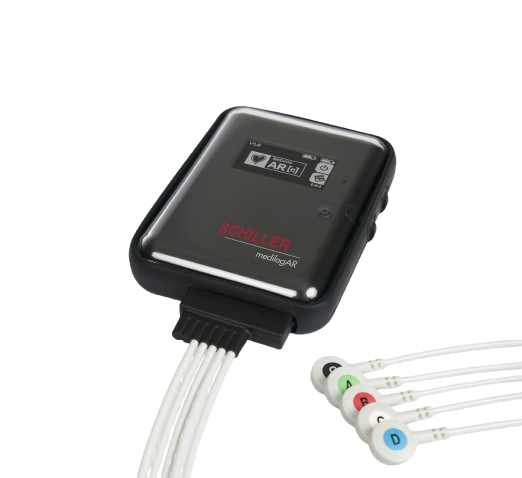

The medilog AR is a high-resolution 3-channel Holter ECG recorder featuring true P-wave analysis, “zero-second” atrial fibrillation detection, dual-battery operation for more than 14 days of recording, and optional SpO₂ monitoring—engineered for robust ambulatory cardiac monitoring.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: SCHILLER

Description
Reviews (0)

Description

The SCHILLER medilogAR Holter is robust, shock- and splash-proof as well as easy to clean. Thanks to the dual-battery concept, the patients can be screened for more than 14 days without having to see the doctor to change the batteries. Zero-second atrial fibrillation/atrial flutter detection based on true P-wave analysis is one of the engineering highlights of this Holter solution.

Features

Flexible dual-battery concept for more than 14 days of recording duration
Superior resting ECG-grade 32,000 Hz sampling rate on 3 channels, for true P-wave analysis, sophisticated artefact suppression, and motion detection
Zero-second atrial fibrillation/atrial flutter detection based on true P-wave analysis
HRV analysis – Fire of Life
Thanks to ECG-derived respiration recording, the medilogAR is able to screen for potential respiratory episodes during sleep
The optional SpO₂ sensor, connected via Bluetooth, provides additional respiratory information
Removable patient cable
Recharge the internal battery via USB
Robust, shock- and splash-proof as well as easy to clean
The analysis is carried out using the renowned medilogDARWIN2 software

Specifications

Parameter	Specification
ECG Leads	3-channel recording
Sampling Rate	32,000 Hz
Recording Duration	>14 days (with dual-battery arrangement)
Respiratory Monitoring	ECG-derived; SpO₂ optional via Bluetooth
Device Robustness	Shock- and splash-proof
Analysis Software	medilog DARWIN2 with HRV and arrhythmia tools

Download Catalogue

SCHILLER’S MEDILOG HOLTER SYSTEM

Reviews

There are no reviews yet.

Be the first to review “medilogAR Holter”

Quick Comparison

medilogAR Holter remove Sonoscape S8 Exp Portable Ultrasound remove MIR Spirolab Spirometer remove Bistos BT- 740 Patient Monitor remove ASPEL AsCARD Grey ECG Machine remove ASPEL AsCARD Coral PC Based ECG Machine remove

Name medilogAR Holter remove Sonoscape S8 Exp Portable Ultrasound remove MIR Spirolab Spirometer remove Bistos BT- 740 Patient Monitor remove ASPEL AsCARD Grey ECG Machine remove ASPEL AsCARD Coral PC Based ECG Machine remove


SKU SF1033560012-15 SF1033560084-13 SF1033560059-9 SF1033560075-5 SF1033560075-11

Rating

Price

~~$0.00~~

$9,350.00

$2,101.00

$715.00

$1,166.00

$486.00

Stock

Availability

Add to cart

Description

Shipped From Abroad The medilog AR is a high-resolution 3-channel Holter ECG recorder featuring true P-wave analysis, “zero-second” atrial fibrillation detection, dual-battery operation for more than 14 days of recording, and optional SpO₂ monitoring—engineered for robust ambulatory cardiac monitoring.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad With ultra-modern innovative design and the clinically-proven technologies, S8 Exp is portable ultrasound scanner well equipped as a low-physical-effort and enhanced-image-quality ultrasound scanner, which not only provides optimized solutions for versatile applications, but does help to improve the user-experience for both routine and non-traditional challenges. Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In Stock

Spirometry test:

FVC, VC, MVV, PRE/POST Bronchodilator comparison with a wide range of selectable parameters. Pediatric Incentive for Spirometry. Each function can be easily activated by a simple touch on the bar menu Stand Alone Mode Delivery & Availability: Typically 2 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad Bistos BT - 740 Patient Monitor: Bistos Patient Vital Signs Monitor, ECG, Resp., SpO2, NIBP, Temp., BT-740. The Bistos BT-740 is a multi-parameter patient monitor with an 8.4" TFT Color screen. The standard paramaters are ECG, respiratory, SpO2, NIBP and temperature. Additional options are EtCO2, IBP, Multi-gas, CO and Masimo SpO2. The BT-740 has a fanless design for quiet operation. Delivery & Availability: Typically 7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad Electrocardiograph AsCARD Grey v.07.225 - is a 1, 3, 6, 12 channel ECG unit which enables to make electrocardiogram in full 12 leads. It is intended to conduct ECG examinations of adults and paediatric patients in all types of health care centres. ECG examination may be recorded in manual or automatic mode, with the possibility of analysis and interpretation. The device can be powered from 100 V ÷ 240 V mains supply or by an internal battery. Delivery & Availability: Typically 10 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad AsCARD Coral electrocardiograph is a 3-, 6-, 12-channel ECG equipped with CardioTEKA software allows transmission of full 12 ECG leads to the user PC through USB interface. It is intended for carrying out ECG examinations in adults and pediatric patients in all types of health care centres. ECG procedures can be performed by qualified personnel only. AsCARD Coral can cooperate also with CardioTEST system as 12-channel ECG device allows transmission of full 12 ECG leads to the user PC through USB interface. Delivery & Availability: Typically 10 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

https://youtu.be/lP_5jnRG-yE

Atrial fibrillation/atrial flutter detection in zero seconds thanks to true P-wave analysis, easy, fast and hygienic to handle, flexible dual-battery concept for more than 14 days recording duration. This is the SCHILLER medilogAR Holter. The SCHILLER medilogAR Holter is robust, shock- and splash-proof as well as easy to clean. Thanks to the dual-battery concept, the patients can be screened for more than 14 days without having to see the doctor to change the batteries. Zero-second atrial fibrillation/atrial flutter detection based on true P-wave analysis is one of the engineering highlights of this Holter solution.

Features

Flexible dual-battery concept for more than 14 days of recording duration
Superior resting ECG-grade 32,000 Hz sampling rate on 3 channels, for true P-wave analysis, sophisticated artefact suppression, and motion detection
Zero-second atrial fibrillation/atrial flutter detection based on true P-wave analysis
HRV analysis – Fire of Life
Thanks to ECG-derived respiration recording, the medilogAR is able to screen for potential respiratory episodes during sleep
The optional SpO₂ sensor, connected via Bluetooth, provides additional respiratory information
Removable patient cable
Recharge the internal battery via USB
Robust, shock- and splash-proof as well as easy to clean
The analysis is carried out using the renowned medilogDARWIN2 software

Specifications

Parameter	Specification
ECG Leads	3-channel recording
Sampling Rate	32,000 Hz
Recording Duration	>14 days (with dual-battery arrangement)
Respiratory Monitoring	ECG-derived; SpO₂ optional via Bluetooth
Device Robustness	Shock- and splash-proof
Analysis Software	medilog DARWIN2 with HRV and arrhythmia tools

Download Catalogue SCHILLER'S MEDILOG HOLTER SYSTEM

Sonoscape S8 Exp Portable Ultrasound scanner

DETAILS Agile and Versatile With ultra-modern innovative design and the clinically-proven technologies, S8 Exp Portable Ultrasound scanner is well equipped as a low-physical-effort and enhanced-image-quality ultrasound scanner, which not only provides optimized solutions for versatile applications but does help to improve the user experience for both routine and non-traditional challenges. Working with S8 Exp, it will trigger your unlimited reverie and endow you with endless charm. Carrying forward the classical design of SonoScape's portable ultrasound products, S8 Exp successfully combines the best ergonomics, attractive design and ease of use. This charismatic identity is also enhanced by a sophisticated color palette—with sedate grey as its interior paint color and pearl white as exterior cover, S8 Exp reveals a style of aristocrat and strong character among SonoScape's ultrasound systems. Workflow The S8 Exp is a portable ultrasound scanner that adapts to your workflow, whether you are in the consulting room, at the bedside, or at a remote location. With easy-to-use new platform designed for sonographers' needs and full connection interfaces for easy connectivity and data sharing, S8 Exp leads to improved user comfort and clinical outcome as well as patient throughput and working efficiency. Powerful Platform Embedded with SonoScape's core imaging technologies such as μ-scan, PHI and Spatial Compound, S8 Exp boasts exceptional 2D image, sensitive spectral, Color and Power Doppler, displaying well-defined anatomy and pathology and facilitating a highly optimized diagnostic user environment for conclusive diagnoses. Besides, S8 Exp offers a comprehensive selection of electronic probes to maximally extend its capabilities to meet a wide range of applications including the abdomen, pediatric, OB/GYN, cardiovascular, musculoskeletal, etc. The advanced probe technologies also effectively enhance the image quality and confidence in reaching clinical diagnoses even in difficult patients.

Click Here To Download Catalogue

Spirometry test:

FVC, VC, MVV, PRE/POST Bronchodilator comparison with a wide range of selectable parameters. Paediatric Incentive for Spirometry. Each function can be easily activated by a simple touch on the bar menu Stand Alone Mode. Colour screen Touchscreen 7 inches TFT display Database up to 10,000 Spirometry tests or 900 hours of Oximetry recording coupled with powerful and flexible search services. Optional function available: Oximeter with adult or paediatric finger probe. Long life Rechargeable Battery. Available with both DISPOSABLE or REUSABLE turbine flowmeter. PC based mode, using WinspiroPRO® Bluetooth® 2.1 and USB Connectivity Wireless or via cable Real Time test directly on your PC. Winspiro PRO® PC software provides Real Time Flow/Volume and Volume/Time curves with PRE/POST Bronchodilator comparison on your PC. Includes free online updates. Paediatric Incentive for Spirometry with wide choice of pictures and animations. Spirometry test after drug adminitration Bronchodilator Reversibility, Bronchial Challenge with FEV1-response curve with protocols for both Methacholine and Mannitol. Quanjer 2012-GLI Predicted values with LLN and Z-score Patient Trend Charts for easy follow-up Search engine for instant access to database. Wide choice of communication protocols for integration with EMR.

Spirometry parameters: FVC, FEV1, FEV1/FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25–75, FEF75–85, Lung Age, Extrapolated Volume, FET, Time to PEF, FEV0.5, FEV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV2, FEV2/FVC, FEV3, FEV3/FVC, FEV6, FEV1/ FEV6, FEV1/PEF, FEV1/ FEV0.5, FIVC, FIV1, FIV1/FIVC, PIF, FIF25, FIF50, FIF75, FEF50/FIF50, VC, IVC, IC, ERV, IRV, Rf, VE, VT, tI, tE, VT/tI, tE/tTOT, MVV (measured), MVV (calculated).

Click Here To Download Catalogue

Bistos BT - 740 Patient Monitor: Bistos Patient Vital Signs Monitor, ECG, Resp., SpO2, NIBP, Temp., BT-740. The Bistos BT-740 is a multi-parameter patient monitor with an 8.4" TFT Color screen. The standard paramaters are ECG, respiratory, SpO2, NIBP and temperature. Additional options are EtCO2, IBP, Multi-gas, CO and Masimo SpO2. The BT-740 has a fanless design for quiet operation. Features:

8.4" TFT Color Screen - (Optional Touch Screen Upgrade)
Standard parameters are ECG, Resp., SpO2, NIBP, Temp.
Ultra-low power consumption
Quiet operation
High accuracy SpO2 reading
Data transfer or firmware upgrade via USB
2 Years Manufacturer's Warranty

Technical Specifications:

Model		BT-740
Display		8.4" Color TFT Screen
ECG	Lead type	3/5 Lead
	Gain Selection	x0.25, x0.5, x1, x2, x4, auto
	Sweep speed (mm/s)	12.5, 25, 50
	Bandwith:(Diagnostic Mode)	0.05-130Hz
	Monitoring Mode	0.5-40Hz
	Surgery Mode	1-25Hz
	Strong Mode	5-20Hz
	Heart Rate Range (bpm)	Adult:15-300
	Heart Rate Range (bpm)	Pediatric/neonate: 15-350
Respiration	Method	Trance-thoracic Impedance
	Measurement Range	0-120rpm
	Sweep Speed (mm/s)	6.25, 12.5, 25
SpO2	Measurement Range	0-100%
	Accuracy (70-100%)	Adult/Pediatric	+/-2%
	Accuracy (70-100%)	Neonate	+/-3%
	Accuracy (0-69%)	Unspecified
	Perfusion Index	0.05-20%
Pulse Rate	Range (bpm)	25-250bpm
NIBP**	Method	Automatic (Oscillometric)
	Operation Mode	Manual/Auto/STAT
	Parameter	Systolic, Diastolic, Mean
	Systolic Range (mmHg)	Adult	40-270
		Pediatric	40-200
		Neonate	40-130
	Diastolic Range (mmHg)	Adult	10-210
		Pediatric	10-160
		Neonate	10-90
	Mean Range (mmHg)	Adult	20-230
		Pediatric	20-175
		Neonate	20-100
Temperature	Range	0-50°C
Temperature	Parameter	T1, T2 and TD
IBP"	Channel	2 Channel, 4 Channel
IBP"	Range (mmHg)	-50-400
Printer*	Type	Thermal dot array
	Print Speed (mm/s)	12.5, 25, 50
	Paper Size (mm)	50
CO2*	Sidestream	Masimo ISA / Bistos
CO2*	Mainstream	Masimo IRMA / Bistos
Multi-gas O2*		Masimo ISA
SpO2 Masimo*		Masimo SpO2
CO*	Method	Thermodilution
CO*	Range	0.2-20 L/min
Battery	Type (Capacity)	Li-ion (440mAh)
	Run Time	6 hour
	Charging Time	4 hour
Interface		RJ45, USB, Nursing Call
Warranty		2 Years

Click Here To Download Catalogue

Electrocardiograph AsCARD Grey v.07.225 - is a 1, 3, 6, 12 channel ECG unit which enables to make electrocardiogram in full 12 leads. It is intended to conduct ECG examinations of adults and paediatric patients in all types of health care centres. ECG examination may be recorded in manual or automatic mode, with the possibility of analysis and interpretation. The device can be powered from 100 V ÷ 240 V mains supply or by an internal battery. Technical Specification:1. Visualisation of 1, 3, 6 or 12 ECG waveforms, analysis results and interpretations, examinations stored in memory. 2. Recording of 12 standard leads. 3. Print out in 1, 3, 6 or 12 ECG waveforms mode. Printing of a selected group:

1 channel - (I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6),
3 channels in standard format - (I-II-III, aVR-aVL-aVF, V1-V2-V3, V4-V5-V6),
3 channels in Cabrera format - (aVL-I-aVR, II-aVF-III, V1-V2-V3, V4-V5-V6),
6 channels in standard format - (I-II-III-aVR-aVL-aVF, V1-V2-V3-V4-V5-V6),
6 channels in Cabrera format - (aVL-I-aVR-II-aVF-III, V1-V2-V3-V4-V5-V6),
12 channels in standard format - (I-II-III-aVR-aVL-aVF-V1-V2-V3-V4-V5-V6),
12 channels in Cabrera format - (aVL-I-aVR-II-aVF-III-V1-V2-V3-V4-V5-V6).

4. Available types of examinations: manual, AUTO, SPIRO, automatic to clipboard, AUTOMANUAL, LONG (v.07.xx5). 5. Automatic record ECG signal from all 12 leads simultaneously, with save to temporary memory function, then depending on the settings: print out examination's result, analysis, interpretation or save to database. 6. Adjustable length of automatic examination recording — interval of 6–30 seconds. 7. Reverse recording in automatic examination to clipboard and in manual examination (v.07.xx5). 8. Rhythm print out in AUTO examination and automatic examination to clipboard. 9. Definable stages of examination according to set up parameters in AUTOMANUAL examination. 10. Storing an examination in memory, 1–15 minutes in LONG mode (v.07.xx5). 11. ECG printed directly from the electrocardiograph using PCL5/6 printer. 12. Printout from database. Possibility to printout additional information about examination or patient. 13. Alpha-numerical soft-key keyboard with functional buttons. 14. Possibility to set parameters: speed, sensitive, intensity of printing. 15. Menu displayed on the screen for easy operation using touch panel. 16. Database of patients and examinations. Internal memory up to 1000 patients, 1000 examinations. 17. Viewing of the memory-stored examinations on display, with the possibility of changing the number of leads, augmentation and speed. 18. Automatic analysis and interpretation in compliance with EN 60601-2-51 (CSE database) - Analysis and interpretation dependable on age & sex of a patient. 19. Up to 130 automatic examinations in battery mode. 20. Continuous heart rate (HR) measurement and display. 21. Adapted to direct operation on an open heart. 22. Device allows to enable and disable the following filters:

power line interference filter; filters available: 50 Hz, 60 Hz,
muscle interference filter; filters available: 25 Hz, 35 Hz, 45 Hz,
contour line filters; filters available: 0.15 Hz, 0.45 Hz, 0.75 Hz, 1.5 Hz,
the low-pass filter (v.07.224, v.07.324, v.07.225, v.07.325): 75 Hz, 100 Hz, 125 Hz, 150 Hz,
the auto-adaptive filter (v.07.224, v.07.324, v.07.225, v.07.325).

23. Detection of electrode detachment, independent for each channel (INOP control). 24. Detection of cardiac stimulator. 25. Sound signalling of detected stimulations of heart stimulator. 26. Protection against defibrillation pulse. 27. ECG recordings optionally saved on PenDrive, send on email or to other AsCARD via EKG-MAIL. 28. Wireless communication with the LAN or the Internet (v.07.3xx). 29. Wired communication with the LAN or the Internet. 30. Cooperation with CardioTEKA and CardioTEL. 31. Possibility of accepting orders for examination and sending back the results in HL7 standard via Internet (v.07.3xx). 32. Possibility of conducting preliminary spirometry examinations by using SPIRO-31 attachment. 33. EMR – keep performed examinations in specified period of time on external data storage (USB memory). Accessories 1. Limb electrodes, 4 pieces (EKK type). 2. Chest electrodes, 6 pieces (EPP type). 3. KEKG 30R ECG cable. 4. Main cable. 5. R-A4 paper, 112 mm wide (1 reel). 6. ECG gel. 7. Operation manual.

Click Here To Download Catalogue

AsCARD Coral electrocardiograph is a 3-, 6-, 12-channel ECG equipped with CardioTEKA software allows transmission of full 12 ECG leads to the user PC through USB interface. It is intended for carrying out ECG examinations in adults and pediatric patients in all types of health care centres. ECG procedures can be performed by qualified personnel only. AsCARD Coral can cooperate also with CardioTEST system as 12-channel ECG device allows transmission of full 12 ECG leads to the user PC through USB interface. Technical Specification:

Number of electrodes: 10
ECG channels: 12
Sampling frequency: 1600 Hz
Transmitted ECG signal resolution: 12 bits
Transmission type: USB 1.1
ECG signal analysis: CardioTEKA Software
