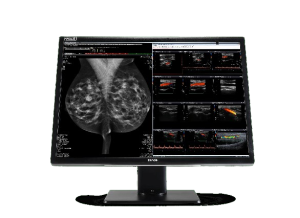

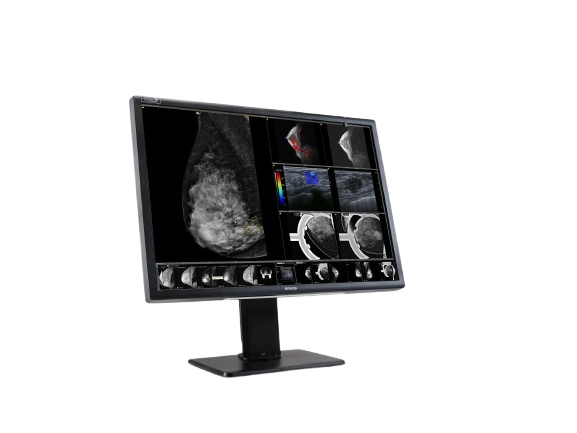

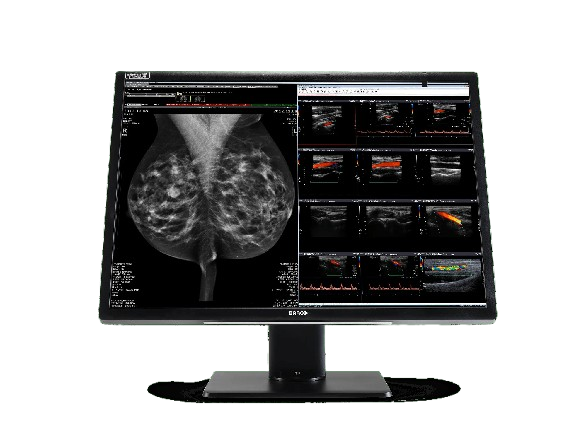

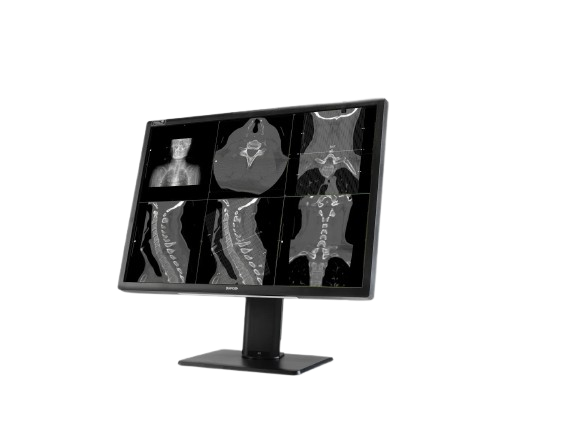

Nio Fusion 12MP (MDNC‑12130)

Brands: Barco-Health

~~$0.00~~

Shipped From Abroad

The Nio Fusion 12MP (MDNC-12130) display is designed to combine PACS and breast images on one workstation, so you don’t need to work on a cluttered desk with complex configurations and multiple portrait displays. A Nio Fusion 12MP will represent both 2D and 3D images fluidly, brightly and in detail, further helping you to speed up your reading sessions. A set of unique integrated tools improve reading ergonomics and support efficient workflow for static and dynamic imaging.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Barco-Health

Description
Reviews (0)

Description

The Nio Fusion 12MP (MDNC-12130) display is designed to combine PACS and breast images on one workstation, so you don’t need to work on a cluttered desk with complex configurations and multiple portrait displays. A Nio Fusion 12MP will represent both 2D and 3D images fluidly, brightly, and in detail, further helping you to speed up your reading sessions. A set of unique integrated tools improves reading ergonomics and supports efficient workflow for static and dynamic imaging.

Medical display
Excellent uniformity correction
Perfect representation of calibrated colors and greyscales

Enjoy consistent and compliant colors and grayscales

Barco’s QAWeb Enterprise software, included in the display, guarantees consistent image quality through automated calibration and QA, and also enables compliance with the latest regional and international regulations for image quality.

Read on a flexible display, with optimal comfort

The Nio Fusion 12MP is surprisingly thin and light. It mirrors most of a human’s natural field of vision and was designed to reduce head, hand, and eye movements to a minimum. You can even switch between two workstations in no time, at the touch of a button, with integrated KVM (Keyboard-Video-Mouse).

A reflection-free surface enhances image sharpness
SoftGlow ambient lighting reduces eye fatigue
Uniform Luminance Technology ensures constant luminance in all regions of the screen
Ambient Light Sensor and Compensation provide consistent images in any lighting conditions

A future-proof investment that lasts

The Nio Fusion 12MP is an all-in-one imaging solution for both PACS and breast imaging, which will make it possible for you to save operational costs. Its smooth, fast system was designed to support you in your workflow, enabling you to see more patients. And last but not least, thanks to its long lifetime, the display can be your companion for years to come. All its components are warranted for 5 years.

Ensuring diagnostic confidence with MDR Class IIa

Our radiology displays are MDR-certified as Class IIa. Their product information has been reviewed and cleared by independent medical and technical experts, and is audited yearly. In other words, we ensure diagnostic confidence and peace of mind for our users.

Technologies that enhance image quality:

Uniform Luminance Technology to ensure that all regions of the screen have an even luminance
SteadyColor™ calibration technology to meet the DICOM standard for grayscales and to guarantee consistent, perceptually linear color
SteadyGray™ ensures that all gray values closely match the selected white tint. This can be a blue base, a clear base, or some other preferred white tint
QAWeb Enterprise, a cloud-based technology for automated calibration and Quality Assurance
I-Guard™ front sensor to ensure 24/7 compliance with image quality standards and guidelines
Efficient DuraLight™ backlights for a long lifetime of brighter images

Technologies that enhance productivity:

RapidFrame™ to ensure crisp and in-focus moving images, with up to 10% higher detection of small details in moving images*
Conference CloneView™ software to project and control images on a large screen with ease
SoftGlow™ task and wall lighting to improve reading room conditions
SpotView™ to highlight subtle details in a region of interest
KVM to switch effortlessly between two workstations

A+ ecolabel for Nio Fusion 12MP

The Nio Fusion 12MP has been subjected to Barco’s ecoscoring protocol and has received an A+ rating. Some key factors that contributed to this rating are:

Automatic standby mode when the device is not in use
100% halogen-free PCBs, internal cables, and plastic parts >25g
Packaging optimized for logistics
Product design optimized for disassembly
Large plastic parts unpainted

Specifications

Category	Specification
Screen Technology	LCD
Active Screen Size (Diagonal)	784 mm (30.9″)
Active Screen Size (H × V)	653 × 435 mm (25.7″ × 17.1″)
Aspect Ratio	3:2
Resolution	Native 12MP (4200 × 2800 pixels); Configurable to 2 × 5.8MP (2100 × 2800 pixels)
Pixel Pitch	0.1554 mm
Color Imaging / Gray Imaging	Yes / Yes
Bit Depth	30-bit
Viewing Angle (H/V)	178°
Uniformity Correction	ULT
SteadyGray / SteadyColor	Yes (in display, with system components as outlined in user guide)
Ambient Light Presets / Sensor	Yes / Yes
Front Sensor	Yes
Maximum Luminance (Typical)	1200 cd/m²
DICOM Calibrated Luminance	MDNC-12130: 600 cd/m²
Contrast Ratio	1500:1
Response Time	10 ms (average, all transitions within 1 frame period)
Housing Color	Black / White
Video Input Signals	2 × DisplayPort 1.2
Video Output Signals	N/A
USB Ports	2 × USB-B 2.0 upstream (switchable endpoint); 2 × USB-A 2.0 downstream
KVM Switch	Yes
Power Rating	100–240 Vac, 50/60 Hz, 3.6–1.6 A
Power Consumption	105 W (nominal); <0.5 W (hibernate/standby)
Dimensions with Stand (W × H × D)	695 × 528~628 × 239 mm
Dimensions without Stand (W × H × D)	695 × 483 × 74 mm
Dimensions Packaged (W × H × D)	800 × 650 × 295 mm
Net Weight with Stand	16.6 kg
Net Weight without Stand	12.0 kg
Net Weight Packaged	21.3 kg (without optional accessories)
Tilt / Swivel / Pivot	-5° to +25° / ±30° / N/A
Height Adjustment Range	100 mm
Mounting Standard	VESA (100 mm)
Screen Protection	N/A
Recommended Modalities	All digital images, including digital mammography and breast tomosynthesis
Certifications	CE0123, FDA 510(K) K203106, CCC, KC, BIS, EAC
Safety Standards	IEC/EN/UL/CSA 60950-1, 62368-1, 60601-1, AAMI ES 60601-1
EMI Standards	IEC/EN 60601-1-2, FCC Part 15 Class B, ICES-001 Level B, VCCI
Environmental Compliance	EU RoHS, China RoHS, Korea e-Standby, REACH, WEEE, Packaging Directive
Supplied Accessories	User guide, Documentation disc, System sheet, Video cables, USB cables, Mains cables
Optional Accessories	Display controller, QA software (QAWeb)
Warranty	5 years (includes 40,000 hrs backlight warranty)
Operating Temperature	0–35°C (specs: 20–30°C)
Storage Temperature	-20–60°C
Operating Humidity	10–70% RH (non-condensing)
Storage Humidity	10–70% RH (max. 70% at 40°C)
Operating Pressure	≥62 kPa
Storage Pressure	50–106 kPa
