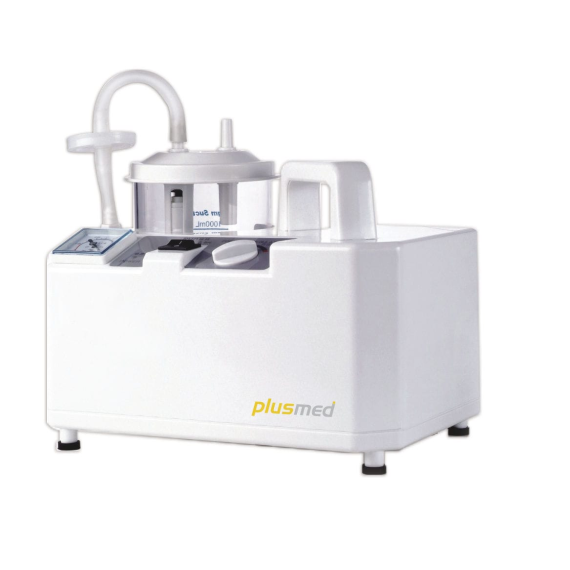

pM-7E A Electrical Phlegm Suction Unit

Brands: Plusmed

~~$0.00~~

Shipped From Abroad

The pM-7E A Electrical Phlegm Suction Unit is a portable, high-performance device designed for emergency and home use. With oil-free maintenance-free operation, it delivers strong negative pressure for efficient phlegm suction. Compact, lightweight, and easy to clean, it’s ideal for hospitals, clinics, and patient care.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Plusmed

Description
Reviews (0)

Description

Portable absorb phlegm apparatus designed based on developing orientation of similar products at home and abroad is a new generation of oil free lubrication suction device, which is suitable for use by the patient who has difficulty in phlegm removal due to illness, coma and operation, as well as for aspirating such liquid as pus and blood during the clinical practice. It is the commonly applied medical device for use in the emergency room, operating room, and for nursing in the sickroom and home health care.

Features

High Negative Pressure
Large Flux
Oil-free Lubrication Pump
Embedded Liquid holder
Low noise operation
Max flow rate: ≥18 L/min
Compact and lightweight for portability
Overflow protection with a safety bottle
Easy-to-clean design with durable plastic housing

Specifications

Parameter	Specification
Model	pM-7E A
Power Supply	AC 220V ±10%, 50Hz
Max Negative Pressure	≥0.075 MPa
Pump Type	Oil-free piston pump
Max Air Flow Rate	≥18 L/min
Noise Level	≤65 dB(A)
Reservoir Bottle Capacity	1000 ml
Net Weight	Approx. 3.5 kg
Dimensions	Approx. 35 × 26 × 29 cm
Safety Features	Overflow protection, pressure relief

Download Instruction Manual
