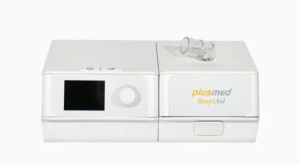

RespiAid CPAP System

Brands: Plusmed

~~$0.00~~

Shipped From Abroad

The RespiAid CPAP System offers advanced sleep apnea therapy with adjustable pressure settings (4–25 hPa), ultra-quiet operation (≤30 dB), and an integrated humidifier. It includes an SD card for data tracking, a user-friendly interface, and a compact design, making it ideal for both home use and long-term respiratory care. It is also equipped with required alarm and warning systems to offer simplicity, safety, and comfort to the user, to provide continuous treatment.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Plusmed

Description
Reviews (0)

Description

With its user-friendly interface and intuitive controls, the Respiaid AutoCPAP System offers a seamless experience for users. It effectively delivers a continuous positive airway pressure (CPAP) to help maintain an open airway during sleep, reducing episodes of interrupted breathing and snoring.

This CPAP system incorporates a mask and humidifier, further enhancing the overall treatment experience. The mask provides a secure and comfortable fit, ensuring minimal air leakage, while the humidifier adds moisture to the air, preventing dryness and discomfort.

The Respiaid AutoCPAP System is suitable for use in various settings, including hospitals, clinics, and home environments. It is designed to meet the needs of both medical professionals and individuals seeking effective sleep apnea treatment.

Key Features:

Advanced alarm and warning systems for enhanced safety
User-friendly interface and intuitive controls
Continuous positive airway pressure (CPAP) for uninterrupted breathing during sleep
Secure and comfortable mask for minimal air leakage
Integrated humidifier for added comfort and moisture
Suitable for use in medical facilities and home environments

Technical Specifications

Category	Specification
Device Size	140 × 156 × 94 mm (without humidifier) 262 × 156 × 94 mm (with humidifier)
Environment Conditions	Temp: 5°C–35°C (operation), -20°C–60°C (storage) Humidity: 10%–93% RH, non-condensing Pressure: 760–1060 hPa
Operating Life	5 years (extendable with critical component replacement)
Working Mode	Continuous, ≥8 hours continuous runtime
Ramp Time	Adjustable from 0 to 60 minutes
Pressure Range	4–25 hPa (±0.5 hPa)
Pressure Display Accuracy	±0.5 hPa
Noise Level	≤30 dB at 10 hPa
Power Requirements	100–240 V, 50/60 Hz, ≤2 A
Security Type	Class II, Type BF Applied Part
Waterproof Rating	IP22 (drip-proof)
User Connector	Ø22 mm cone joint
Filter Specification	Particle size ≥10μm
Max Patient Pressure	CPAP: 20 hPa (normal), 30 hPa (fault) Bi-Level: 25 hPa (normal), 40 hPa (fault)
Ventilatory Capacity	See flow rates below table
Average Flow Rate (L/min)	4 hPa: 80 9 hPa: 90 15 hPa: 90 20 hPa: 70 25 hPa: 70
Dynamic Pressure Stability	±0.5 to ±1.0 hPa depending on rate and pressure
Humidifier	Adjustable temperature 0–5 Gas temp ≤43°C
Humidifier Water Capacity	≥240 ml
Tube Length	1.8 m ±0.18 m, Ø22 mm
Weight	<1 kg (without humidifier), <1.6 kg (with humidifier)
SD Card Capacity	≥8 GB, records user treatment data

Download Instruction Manual
