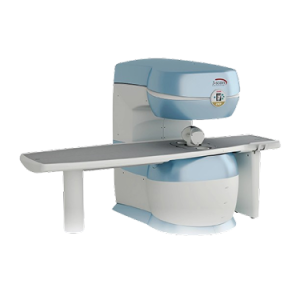

S-scan-Musculoskeletal MRI System

The next step in office MRI

Easy patient access

Imaging & Visualization

The S-scan is optimised for efficiency, patient comfort, and comprehensive MSK imaging.

• Comprehensive MSK Coverage: It is capable of imaging all MSK anatomy, encompassing joints and the crucial Cervical (C-spine) and Lumbar (L-spine) segments.

• eXP Technology: It is designed with eXP Technology, which includes the Speed-Up technique to make acquisitions up to 35% faster.

• "In-Office" Footprint: The smart design is customer-friendly, requiring only 20 m² of space, making it efficient and cost-effective for private practices.

• Open Access: The system features a wide, asymmetric rotating table and a compact magnet, providing easy patient access and maximising stability and comfort for better image quality. The wide opening also makes it ideal for more advanced applications like MRI arthrography.

• Low Energy Use: The average power consumption during acquisition is low (2 kW).

Clinical Applications

The S-scan is tailored for MSK professionals who require a high-quality, efficient scanner capable of covering both large joints and the spine.

• All Musculoskeletal Anatomy: Primary application is the diagnosis of pathologies in all MSK anatomy:

  • Joints: Foot, ankle, knee, hip, wrist, elbow, and shoulder.

  • Spine: Cervical and Lumbar spine.

• Diagnostic Quality: It provides the high-quality diagnostic information needed to make informed decisions regarding bone, ligament, capsular, soft tissue, and even cartilage lesions.

• Workflow Integration: It is presented as a complete system that allows practices to efficiently manage a substantial MSK workload.

Coils (Probe Types)

The S-scan uses 14 multi-purpose coils designed to maximise sensitivity across the various anatomies it covers.

• Model NO: GX-C002
• Material: Steel
• Characteristics: Multi-functional, Design Sense, Resistance to Heavy Weight, Fashionable
• Application: Elderly, Pregnant Women
• Folding Chair
• Certification: ISO, UL, RoHS, CE

RZ LED iLumen EndoVue 24"

Features:

• • 1920x1200 (WUXGA), 518x324mm, 16:10
  • 178° viewing angle, 49 W
  • 24 inch TFT LCD (LED)
  • 1920 x 1200 pixel (WUXGA)
  • 2 x DVI-D
  • 1 x SD/HD/3G-SDI (BNC)
  • 2 x SOG
  • 1 x VGA (D-sub)
  • 1 x C-Video (BNC)
  • 1 x S-Video (DIN)
  • 1 x Component (RGBS, YPbPr) (5 x BNC)

Full HD Digital Camera System F 1

Features:

• 3-Chip Full HD camera with latest MOS technology for brilliant picture quality
• Pure Natural Colors technology

• best possible picture transmission to medical grade monitors
• 3 programmable remote control buttons User-friendly multilingual menu allows a large variety of setups for individual procedures and surgeons preferences
• Full HD 60fps video recording
• Full HD image saving
• USB pen drive included
• Boost function
• On-screen-menu
• 3 user settings storable
• 5x digital zoom

LUMEN LED 1 High Intensity Light Source 180W

Features:

• More than 10.000h lamp lifetime
• Latest PHASER® – Technology
• Waterproof touch control panel
• High color rendering
• High luminance
• Daylight color temperature
• Low noise level
• No UV or IR light
• Low power consumption
• Video-IN terminal - 1 x VHS (BNC)

AIRFLOW A2 INSUFFLATOR

Feature:

• Gas Flow - 20L/min
• User-friendly interface
• Highest safety standard for patients
• Available with CO2 heating system
• Pre-insufflation mode for use with Verres Cannulas
• Non-heating unit features same gasflow rates as heating unit models
• Gas connection - UNF 7/16“ male
• Gas - Medical Grade Carbon Dioxide.

**SUCTION AND IRRIGATION PUMP P1000

Feature:

• Double roll pump for precise suction- and irrigation during Laparoscopic surgeries
• Also for extraction of smoke gases that arise when using lasers and HF devices
• Optional footswitch for comfortable operation during surgery
• Permits dispensing with mechanically sensitive trumpet valves that require elaborate cleaning
• Independently digital pre-settings for maximum suction and irrigation pressures
• Digital display of actual suction and irrigation pressures
• High efficiency with rates up to 3L/min
• Color coded tubing sets
• Standby function
• Irrigation Power - 0 - 3.0 ml/min
• Suction Power - 0 - 3.0 ml/min
• Pressure - 0 - 750 mmHg.

**DIATHERMY MACHINE 200W

Feature:

• Stable and Powerful Generators,
• Highest patient safety through REM system
• Digital value indicator of chosen power output
• Monopolar and Bipolar applications
• Activation through Hand- or Footswitch
• Safe application through color-coded membrane keypad
• Max output power CUT 200W – 250Ω
• Max output power ENHANCED 120W – 250Ω
• Max output power BLEND120W – 200Ω

• Max output power FORCED COAG 150W – 150Ω
• Max output power SOFT COAG 90W – 100Ω
• Max output power BIPOLAR COAG 80W – 50Ω
• Working frequency 600 kHz
• Patient circuit F
• Mains voltage 115-230 Vac
• Mains frequency 50-60 Hz

HIGH-END TROLLEY

Feature:

• Power columns for cables
• Endoscope Holder
• Variable height support arms
• Conductive rolls
• Optional doors and rear panel in order to protect valuable equipment
• Optional main on/off switch

Accessory

• Fibre Optic Light Guide Cable Ø 4,8mm, 3000mm
• Adaptor for Fibre Optic light guide Type RZ/Storz - connection to unit

Click Here To Download Catalogue
