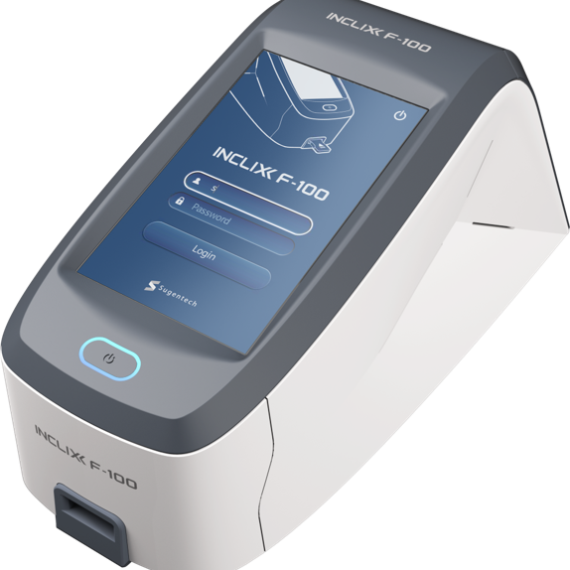

Sugentech Inclix F-100

The Sugentech INCLIX F‑100 is a compact, portable immunofluorescence analyzer designed for high-accuracy, point-of-care diagnostics. Supporting both FIA and TRF methods, it delivers rapid qualitative and quantitative results for a wide range of biomarkers, including infection, allergy, cardiovascular, diabetes, and cancer indicators. With a 5-inch touch LCD, built-in printer, and rechargeable battery, it’s ideal for clinics, labs, and mobile units. It stores up to 10,000 results and allows seamless data export via USB or LIS/HIS. The INCLIX F-100 ensures dependable testing performance, dual test modes, and internal quality control, offering flexibility, speed, and convenience in any clinical or field setting.

Key Features

• 5” Color LCD touch screen
• Built-in printer
• USB 2.0, 2ea
• Rechargeable Lithium-Ion Battery 5,200mAh

• Size: 117 mm(w) x 250 mm(d) x 118 mm(h)
• Weight: 1.0 kg
• Display:  5” Color LCD touch screen
• Power: AC/DC Adapter, 12Vdc
• Power consumption: 3.3A, 40W

• Speed: 11,800rpm with 24- place rotor
• RCF: 14,000g with 24-place rotor
• Acceleration: 0-11,800rpm in 60 seconds, with 24-place rotor
• Brake: Automatic
• Noise: 62dB running with 24-place rotor
• Motor: High precision AC/DC series wound motor, brush gear, computer wound coil winding, balance armature and high speed bearings.
• Timer: 0-15 minute timer, graduated in 1 minute increments. Automatic switch at zero
• Weight: 5.1Kg net (without rotor)
• Dimensions: 23.5cm height x 27cm diameter, footprint 16cm diameter
• Construction: Aluminium casing with a steel lid
• Finish: Body cream white baked enamel, with matt black baked enamel lid

Click Here To Download Catalogue

• Auto zero function: Manual blanking not required
• Dual wavelength measurement system:
• 2 wave lengths 455nm and 575nm
• Plays major role to remove the interference caused due to Hemolysis & turbidity of sample
• LED Light source:
• LED does not require replacement as it lasts longer
• As compared to Lamp, LED are more suitable as there is no intensity fluctuations
• No warm up time required.
• Flexible unit selection:
• Two units either mg/dl or umol/L are selectable, ease of reporting
• Compact slot for Capillary:
• Accuracy of results are directly related to proper alignment of Capillary
• B-111 has the easiest mode to ensure precise values
• Data transfer:
• External device can be connected to instrument through RS232 por
• USB port

• Light source - LED
• Wavelength - 455nm and 575nm
• Net weight - 1kg
• Measuring range - 0-30 mg/dl , 510 umol/L
• Display - 16×2 LCD module with backlight
• Auto calibration - Yes
• Sample type - Serum or plasma
• Sample volume - 40-80μL
• Test time - <5sec
• Units - mg/dl or umol/L
• Dimensions - 150 (W) × 115 (H) × 190 (D) mm
• Interface - RS232
• Reading cuvette - Heparinized micro capillary holder
• Storage temperature - 15-40°c
• Power supply - DC 9V(DC adapter)
• Power consumption - <2W

• Made of high quality PP material with good transparency.
• Applied for Gilson/Finland/Eppendorf Pipettors.
• Carefully inspect of raw material and manufactured under strict process check, all tips are with excellent accuracy and precison.
• Special siliconizing on the inner surface ensure no liquid adhesion and accurate sample transfer.
• Standard tips and filter tips can be autoclaved, high temperature sterilization acceptable.

• Rotor capacity: 12 x 1.5/2.0 mL vessels, 2 x PCR strip
• Max. speed: 14,100 x g (14,500 rpm)
• Extremely compact footprint — measures 9”W x 4.”H x 9ó”D!
• Aluminum rotor accommodates twelve 1.5- or 2.0-mL tubes (maximum diameter of 11 mm)
• Rotor can be autoclaved at 121°C for 20 minutes
• Minimal sample heat transfer — maximum of 12°C after 20 minutes at max speed
• Eliminate costly repairs with the low maintenance drive
• Soft-touch lid closure for ergonomic lid locking — and releases automatically at the end of a run

Click Here To Download Catalogue

• Indicator light indicates working state.
• For 4~6 minutes rapidly sterilizing.
• Sterilizing temperature and time can be preset.
• Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.
• Over temperature & over pressure auto-protection.
• Safe protection of water lacking.
• Exhaust the cool air automatically.
• With three stainless steel sterilizing plates.
• The chamber of the sterilizer is made of stainless steel.
• Automatically shut off with beep reminding after sterilization.
