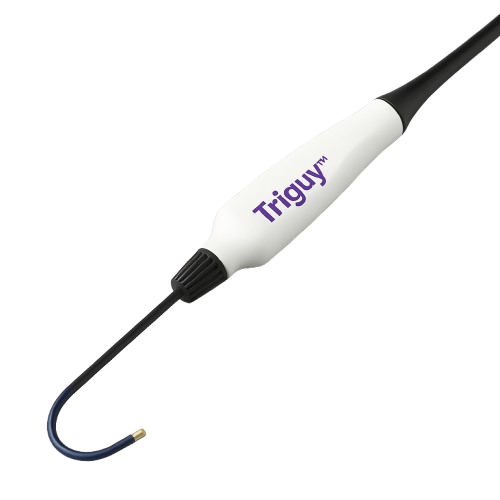

Triguy™ Steerable Ablation Catheter

Brands: APT Medical

~~$0.00~~

Steerable ablation catheter for precise, controlled delivery of RF energy in cardiac ablation procedures.

Shipped From Abroad

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Tag:

Electrophysiology

Brands:: APT Medical

Description

The Triguy™ Steerable Duo-decapolar Mapping Catheter is a state-of-the-art 20-electrode EP catheter designed for detailed, high-density cardiac mapping. Featuring a duo-decapolar (20-pole) electrode array and a highly responsive steerable shaft, it offers precise navigation and stable tissue contact, even in complex cardiac anatomy. This catheter is ideal for identifying conduction pathways and arrhythmic substrates across the atria and pulmonary veins. Its soft, flexible distal segment reduces the risk of trauma, while the optimized electrode spacing enhances electrogram clarity for accurate 3D electroanatomical mapping.

Features

A deflection range of up to 270° to reach challenging anatomy.
Both thermocouple and thermistor models to meet clinical needs.
Available for 4mm and 8mm tip electrodes.
Steerable shaft with deflectable tip for precise positioning
Optimized RF ablation tip for effective lesion creation
Superior torque control for stable navigation
Real-time signal acquisition for accurate targeting
Ergonomic handle for intuitive, one-handed steering
Available in multiple curve configurations
Compatible with leading RF generators and mapping platforms

Additional information

Brand	APT Medical

Reviews

There are no reviews yet.

Be the first to review “Triguy™ Steerable Ablation Catheter”

Quick Comparison

Triguy™ Steerable Ablation Catheter remove OPTIKA B-382PL-ALC Binocular Brightfeld Microscope remove Measuring Beaker 250ml remove Petri Dish Per Pack remove Optika B-190TB Digital Binocular Microscope remove Volumetric Flask 500ml remove

Name Triguy™ Steerable Ablation Catheter remove OPTIKA B-382PL-ALC Binocular Brightfeld Microscope remove Measuring Beaker 250ml remove Petri Dish Per Pack remove Optika B-190TB Digital Binocular Microscope remove Volumetric Flask 500ml remove


SKU SF1033560098-13 SF1033560084-153 SF1033560084-172 SF1033560098-5 SF1033560084-188

Rating

Price

~~$0.00~~

$4.95

~~$0.00~~

$4.10

Stock

Availability

Add to cart

Description

Steerable ablation catheter for precise, controlled delivery of RF energy in cardiac ablation procedures. Shipped From Abroad

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad The OPTIKA B-380 is an educational and laboratory microscope for routine applications. Dye-cast frame, with high stability and ergonomy, for transmitted light observation. Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In stock • Height: 95mm • Width: 85mm • Diameter: 75mm • Volume: 250ml

Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In stock Premium petri dishes made to withstand wet or dry repeated sterilisation. The heavy borosilicate glass and can handle direct flames.

Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad Digital binocular microscope ideal for teachers and secondary schools, with four achromatic lenses (1000x), FN 18 high eyepoint, finite optical system, coaxial focusing, mechanical stage, Abbe condenser and powerful, uniform, white color temperature 3 W X-LED2 illumination.

Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In stock

Made of borosilicate glass
With rim, class A
ISO 1042
Diameter 100mm Height 260mm
Accuracy +/-0,25ml

Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

Features

A deflection range of up to 270° to reach challenging anatomy.
Both thermocouple and thermistor models to meet clinical needs.
Available for 4mm and 8mm tip electrodes.
Steerable shaft with deflectable tip for precise positioning
Optimized RF ablation tip for effective lesion creation
Superior torque control for stable navigation
Real-time signal acquisition for accurate targeting
Ergonomic handle for intuitive, one-handed steering
Available in multiple curve configurations
Compatible with leading RF generators and mapping platforms

Observation mode: Brightfield. Head: Binocular, 30° inclined, 360° rotating (when ALC cable is unplugged). Interpupillary distance: Adjustable between 48 and 75 mm. Dioptric adjustment: On the left eyepiece tube. Eyepieces: WF10x/20 mm, high eye-point and secured by screw. Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings. Objectives: N-PLAN 4x/0.10 N-PLAN 10x/0.25 N-PLAN 40x/0.65 N-PLAN 100x/1.25 (Oil/Water) All with anti-fungus treatment. Specimen stage: Double layer rackless mechanical stage, 150×139 mm, 75×33 mm X-Y range. Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable. Illumination (Fixed Koehler type): X-LED3 with white 3.6 W LED (6,300K) and brightness control. ALC system. Multi-plug 100-240Vac/6Vdc external power supply.

Click Here To Download Catalogue

Measuring beaker • Lined with metric increments up to 200ml • Material: Borosilicate glass • Pouring lip • Great for molecular mixology and molecular gastronomy • Height: 95mm • Width: 85mm • Diameter: 75mm • Volume: 250ml

Premium petri dishes made to withstand wet or dry repeated sterilisation. The heavy borosilicate glass and can handle direct flames. Features:

Heavy duty borosilicate glass petri dish
Autoclavable, can withstand direct flames and harsh chemicals
Individually wrapped top and bottom in wax paper

Digital binocular microscope ideal for teachers and secondary schools, with four achromatic lenses (1000x), FN 18 high eyepoint, finite optical system, coaxial focusing, mechanical stage, Abbe condenser and powerful, uniform, white color temperature 3 W X-LED2 illumination. The 3.1 MP CMOS camera ensures excellent colour reproduction and is connected to a Windows tablet PC with vivid color graphic display for unparalleled comfort and performance. The tablet represents a 2-in-1 solution as it can be disconnected and used as a real PC, being Windowsbased, with powerful Intel processor and large touch screen of 10.1” for fast, responsive and smooth control. Features:

Observation mode: Brightfield.
Head: Binocular, 360° rotating and 30° inclined. Interpupillary distance from 48 to 75 mm; dioptric adjuctment on left eyepiece. Built-in 3.1 MP camera.
Eyepieces: WF 10x/18 mm, secured by screw.
Nosepiece: Quadruple revolving nosepiece, rotation on ball bearings.
Objectives: HC – High Contrast Achromatic 4x/0.10 with anti-fungus treatment. HC – High Contrast Achromatic 10x/0.25 with anti-fungus treatment. HC – High Contrast Achromatic 40x/0.65 with anti-fungus treatment. HC – High Contrast Achromatic 100x/1.25 (Oil/Water) with anti-fungus treatment.
Specimen stage: Double layer mechanical sliding stage, 125×115 mm, 70×30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1mm.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: Abbe N.A. 1.25, pre-centered, adjustable height with iris diaphragm.
Illumination: X-LED² with white 3 W LED and light intensity control. Color temperature: 6,300 K. Multi-plug 100-240Vac/6Vdc external power supply. Color temperature: 6,300 K.

Technical Specifications:

Observation Method - Transmitted Light	Brightfield	Yes
	Simple polarized light	As optional
Main Body	Type	Upright
	Construction material	Aluminum die-cast
	Trasportation handle	Yes
Head	Type	Binocular (Siedentopf)
	Inclination	30°
	360° rotating	Yes
	Interpupillary distance (mm)	48-75
	Dioptric adjustement	On left tube
	Fixing screw for eyepieces	Yes
	Tube inner diameter (mm)	23
Eyepieces	Field number (mm)	18
	Magnification	10x
	Pointer	As optional
	Micrometric scale	As optional
	Diameter of micrometer glass (mm)	20
	High eyepoint (for glass wearers)	Yes
Nosepiece	Positions	Quadruple
	Bi-directional	Yes
	Rotation on ball bearings	Yes
	Objective thread	RMS
Objectives	Optical system	160
	Anti-fungus treatment	Yes
	Parfocal distance (mm)	45
	Standard magnifications	40x-400x
	Type	HC
	Objectives included	4x/0.10, W.D. 18 mm 10x/0.25, W.D. 7 mm 40x/0.65, W.D. 0.53 mm
		100x/1.25 (Oil/Water) W.D. 0.13 mm
Stage	Type	Double layer
	Dimensions (mm)	125x116
	Moving mechanism	Rack and pinion
	Moving range (mm)	70x30
	Material	Anti-scratch painting
	Specimen clips	Yes
	Slide number	1
	X-Y movement	Yes
	X-Y Vernier scale	Yes
	Vernier scale accuracy (mm)	0.1
Condenser - Single Position	Type	Abbe
	Numerical aperture (N.A.)	1.25
	Centrable	Pre-centered
	Focusable	By rotation
Focusing System	Type	Coaxial coarse & fine
	Coarse total travel (mm)	18
	Fine total travel (per single rotation) (mm)	0.4
	Fine graduations	100
	Fine resolution (µm)	4
	Upper stop to prevent contact	Yes
	Adjustable tension	Yes
Transmitted Illumination	Type	X-LED
	X-LED type	X-LED2
	Light source power (W)	3
	Brightness control	Manual
	Lifetime (hours)	> 65,000
	Temperature (K)	6,300
	Max. required power (W)	6
Power Supply for Transmitted Illumination	Type	External
	Microscope connector	Jack, 2.1 mm
	Power plug type	Multi-plug (EU, UK, US)
	Input voltage	100/240 Vac, 50/60 Hz
	Output voltage	6 Vdc 2.5A
Accessories Included	Dust cover	Yes
	Immersion oil (10ml)	Yes
	Tension adjustment tool	Yes
	User Manual	Digital version (downloadable)
	Calibration slide	Yes
	Touch pen	Yes
	USB cable (m)	0.5
Additional Information		External rechargeable battery pack (as optional). Tablet Keyboard (as optional).
Product Weight	Height (mm)	525
	Width (mm)	260
	Depth (mm)	320
Product Weight	(kg)	7.5
Camera specifications	PC Camera resolution (MP)	3.1
	Camera resolution (n° of pixels: W x H)	2048x1536
	USB Signal output	USB 2.0
	Color / Monochrome	Color
	Sensor Size	1/2.5"
	Sensor Technology	CMOS
	Sensor Type	APTINA CMOS
	Rolling Shutter	Yes
	Image Format	4/3
	Pixel Size (mm)	2.2x2.2
	Frame rate full resolution (fps)	8@1280x1024
	Frame rate other resolution (fps)	30@640x480
	Sensitivity	0.53 V/lux-second
	Signal/Noise Ratio (DB)	40.5
	Dynamic range (DB)	66.5
	ADC conversion	12 Bit
	Color Depth	8 Bit
	Exposure time	… - 1.5 sec
	Binning	1x1
	IR filter	Yes
	IR filter range (nm)	680
	Camera Power	PC USB
	C-Mount	Yes
Camera accessories	Calibration slide	Yes
Environment specifications	Working Temperature	-10°C up to +50°C
	Storage Temperature	-20°C up to +60°C
	Relative Humidity	30% to 80%
	Storage Humidity	10% to 60%
Operating System	OS	Windows 10 (64Bit)
Available Software	SW	PROVIEW
Warranty	Years	2
Tablet	Operating system	Windows 10 (64Bit)
	CPU	Intel® Atom™ Z8350, Quad core
	CPU speed	1.44 GHz
	Graphic card	Intel® HD Graphics 400
	RAM	Ram 4 GB LPDDR3
	Display size	LED 10.1” IPS Multi Touch Screen
	Display resolution	1920x1200
	Storage	Hdd 64 GB
	Network	Wireless - Bluetooth 4.0
	Input ports	Micro USB (OTG) - USB Type-C - Micro SD card reader
	Output ports	Microphone - Headphone - Micro HDMI
	Battery Type	Lithium-ion
	Battery capacity	6500 mAh
	Power consumption	15W
	Power supply	5V 3A
	Dimensions (mm)	261X167X9
	Weight (Kg)	0.53
	Language	Multilanguage
Tablet accessories	OTG cable (micro USB-B to USB-A)	Yes
	USB cable USB-B to USB-A (0.5m)	Yes
	Touch pen	Yes
