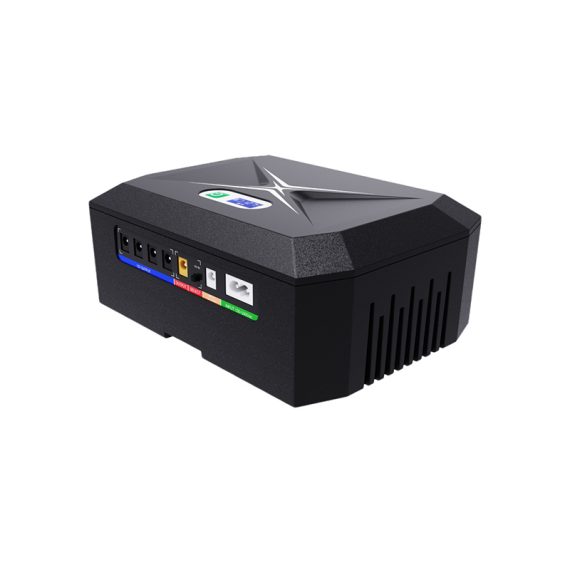

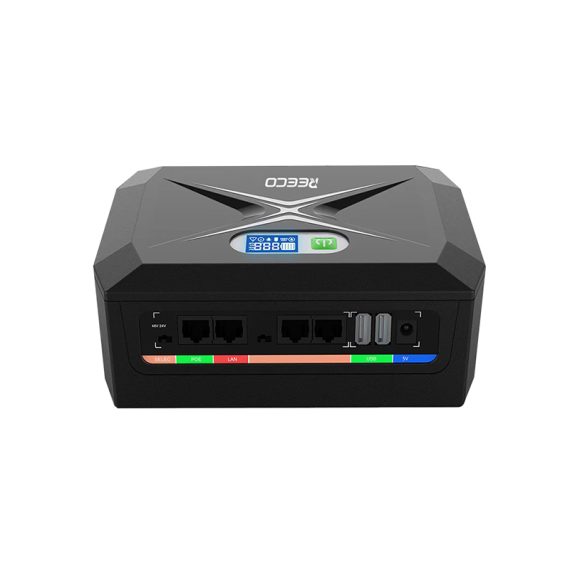

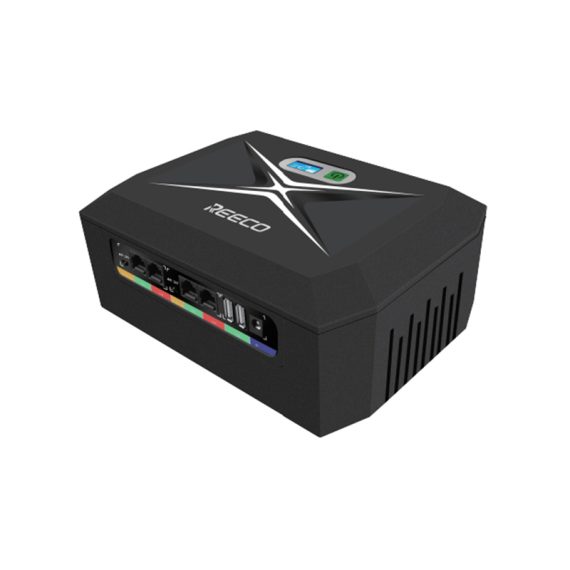

DC UPS with POE Port 45W/60/100/120W with Lithium Battery

Brands: Reeco Power

$0.00

Shipped From Abroad

Features:
  • Compact Size with nice housing case design. Stable performance with strong compatibility.
  • Built-in adapter, wide input, voltage range (100-240VAC).
  • Built-in multiple DC voltage (5/9/12/24/48VDC)output interfaces which can be used with external power adapters or solar panel.
  • Built-in large capacity lithium-ion batteries which is expanded up to 165Wh for long backup time.
  • 100W has 19VDC output, it can be used for desktop computer / laptop computer.
  • 60W/100W with WIFI function, it can be connected to the upper computer control. ( wall mounted type and tower type design).
  • Customize various of plugs and DC interfaces.
  • LCD indicator display design for monitor the working status easier.
  • Built-in multiple protection circuits, intelligently realize overcharge, over discharge, over current, overload, over temperature and short circuit protection
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
SF1033560130139-7
Brands:: Reeco Power

Description

Features:
  • Compact Size with nice housing case design. Stable performance with strong compatibility.
  • Built-in adapter, wide input, voltage range (100-240VAC).
  • Built-in multiple DC voltage (5/9/12/24/48VDC)output interfaces which can be used with external power adapters or solar panel.
  • Built-in large capacity lithium-ion batteries which is expanded up to 165Wh for long backup time.
  • 100W has 19VDC output, it can be used for desktop computer / laptop computer.
  • 60W/100W with WIFI function, it can be connected to the upper computer control. ( wall mounted type and tower type design).
  • Customize various of plugs and DC interfaces.
  • LCD indicator display design for monitor the working status easier.
  • Built-in multiple protection circuits, intelligently realize overcharge, over discharge, over current, overload, over temperature and short circuit protection



Specifications
Model DCP-45W DCP-60W DCP-100W DCP-120W
Input voltage 100-240Vac/50-60Hz
12-24Vdc (2.5A Max)
1*9/12V(2A) (selectable)
Output voltage 4*12V(3.5A) Standard: 4*12V(5A)

Customized: 3*12V(5A)+1*19V(3A)

 Standard: 4*12V(8A)

Customized: 3*12V(8A)+1*19V(5A)

 Standard: 4*12V(10A)

Customized: 3*12V(10A)+1*19V(6A)
1*5VDC+2*USB (2.4A)
Standard：

1*24(1.2A) /48V(0.6A)(POE 1 Gbps) (Selectable)

Customized：

1)2*24(1.2A) /48V(0.6A)(POE 1 Gbps) (Selectable)

2)1*24(1.2A) /48V(0.6A)(POE 1 Gbps) (Selectable)+1*15V(1.5A)/24V(1A) POE(Selectable)

3)2*15V(1.5A)/24V(1A) POE(Selectable)
Efficiency AC mode:>85%,Battery mode:>90%
battery size 18650/21700/32700 18650/21700/32700 18650/21700/32700 18650/21700/32700
battery type Lithium-ion battery/LiFePO4 battery
battery capacity 8000-20800mah 8000-48000mah 8000-48000mah 8000-48000mah
battery numbers 4/8 4/8 4/8 4/8
Material ABS
protection function Over-charge, Over-discharge, Over-current, overload, over-temperature,short circuit
operating Temperature 0℃~40℃
Storage Temperature -10℃-50℃
humidity 10%-90%RH
altitude <3000m
Noise level <45db
Product Dimensions 180*130*64mm 214*158.5*86mm 214*158.5*86mm 214*158.5*86mm
package size 196*202*73mm 230*230*95mm 230*230*95mm 230*230*95mm
Net weight 1.27(max) 1.85kg(max)   1.88kg(max)   1.9kg(max)
Gross weight 1.32(max) 2.6kg(max)   2.63kg(max)   2.65kg(max)
