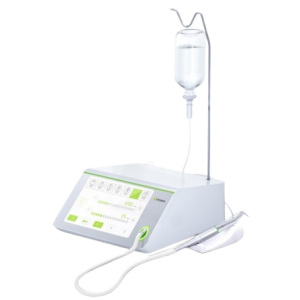

Appledental Implant Motor

APPLEDENAL Implant Motor Functions:

• 7 steps to implant: 1. It's easy to use because the LCD color screen clearly displays each step of the operation. (without a secondary operation interface, it is easy to get familiar with)
• The implant steps are graphically displayed, making it more intuitive. 33 Custom Programs
• 1:1, 1:5, 1:16, 20:1 optional ratios, multi-functional in one
• The matching surgical straight handpiece can be used for maxillary sinus lift surgery
• It can be equipped with different contra-angle machines, such as 1:1, 1:5, and 16:1, which can be used for cutting, grinding teeth, and for extraoral fine-tuning after implantation and crowning

Advantages  of the implant motor:

•  Precise torque；1. Large torque 70N.cm makes difficult surgeries easier
• Precise torque control makes operation more assured 2. Longer lifespan; German imported motor, ultra-long lifespan, 3-year warranty； Strong stability；1. Less jitter, more stable
• Super quiet - presented in video - long bur; with decibel tester； Bright Lights；

Key Features

• Wide Speed Range: 100–40,000 rpm allows precise drilling control

• High Torque: 5–80 N·cm gearing ensures stability during implant placement

• Integrated Water Pump: Up to 110 ml/min for cooling and irrigation

• LCD Color Display: Guides users through a 7-step implant protocol

• Compact & Portable: Dimensions ~277×245×109 mm; lightweight 150 g motor

• Versatile Power Input: Operates across 90–230 V and both 50/60 Hz systems

IMPLANT MOTOR PARAMETERS

• Rotation Speed Range: 100–40,000 rpm

• Torque Range/Gear 20:1: 5N·cm–80N·cm

• Max Pump Output: 110 ml/min

• Main Unit Dimensions: 277 mm × 245 mm × 109 mm

• Motor Dimensions: Φ23.3 × 88

• Motor Weight: 150 g

• Power Supply: AC 90–230 V 50/60 Hz

• Long functional life
• Sturdy design
• Can be operated without power
• Easy operations

• FreeFill - the newest filling system for liquid Denut's gutta-percha.
• Wireless - minimizing the time and materials needed to fill the channel.
• The use of the device ensures the highest quality and precision in filling the ducts.
• Wireless device 3-dimensional obturation system.
• Fantastic combination of filling with the method of vertical compaction.
• Provides excellent hermetic sealing of the root canal.
• Together, the entire main channel and side channels are filled.
• Excellent control of the honing part and filling of anatomically complex channels.
• Two mobile systems in one device (hot plugger and obturator).
• The obturator cover can be sterilized in an autoclave.
• The device is covered by the manufacturer's one-year warranty (application tips and tips for the plugger are consumable - they are not covered by the warranty).
• Technical data - charging system and batteries:
  • operating voltage - DC 3.7 V,
  • input adapter - AC 100 - 240 V, 50/60 Hz,
  • output - DC 7.5 V, 2.5 A,
  • indicator indicating the status of charging / charging,
  • time to full charge - about 1 hour,
  • two power supplies included.

• Gun - Obturation Gun:
  • heater - DC 3.7 V, 10 W,
  • temperature range - 1500C, 1800C, 2000C, 2200C (visible on the display),
  • working time with continuous use of the gun - about 120 minutes (when the battery is fully charged),
  • automatic shutdown after 5 minutes of non-use (battery saving),
  • automatic shut-off after 15 minutes of continuous operation (prevents burning of the heater),
  • ECO system (energy-saving) - temperature maintained at 1200C in order to warm up to a given temperature faster,
  • induction switch placed in the handle - switches the heating on / off depending on whether the device is held in hand or not,
  • the possibility of setting the needle in any direction (once the bent needle can be used to fill the lower or upper one).

• Plugger - obturation pen:
  • heater - DC 3.7 V, 10 W,
  • temperature range - 1500C, 1800C, 2000C, 2200C (visible on the display),
  • working time for continuous use of the plug - 60 minutes (when the battery is fully charged),
  • 3600 power button,
  • 6 directions of injection tips setting,
  • automatic shutdown after 5 minutes,
  • information about proper connection of the needle,
  • information about the damaged needle.

• Set contains:
  • gun - obturation gun - 1 piece,
  • gun stand with built-in charger - stand for gun - 1 piece,
  • plugger - obturation pen - 1 piece,
  • stand for plugger with built-in charger - stand for pen - 1 piece,
  • injection needles - gun needle - 3 pieces,
  • pen tip - pen tip - 4 pieces,
  • the key for injection needles - adapter - 1 piece,
  • pusher for hot gutta-percha - 2 pieces,
  • thermal casings - heat insulator - 2 pieces,
  • cleaning brush - brush - 1 piece,
  • power supply - 2 pieces,
  • gutta-percha - 20 pieces,
  • instruction - 1 piece.

• There is a possibility to buy tips for the plugger:
  • set - 4 sizes after the play,
  • size F - white (thin),
  • FM size - yellow,
  • size M - red,
  • ML size - black.

Click To Download Catalogue

• Simple pencil type grip for easy use and accurate application
• A broad range of applicators
• Freezing temperature
  • Liquid freezing, -89°C / -128°C
  • Contact freezing, -80°C / -112°C
• The level of cold generated is adjusted by the rate at which the metering lever is depressed
• CE marked according to Medical Device II
