Barco MDSC‑8232 M3D
$0.00
Shipped From Abroad

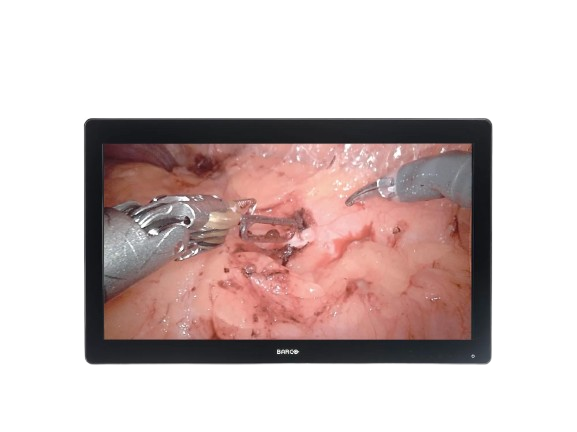

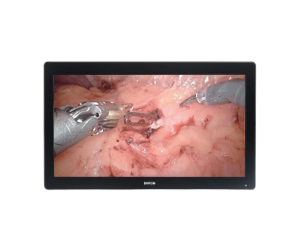

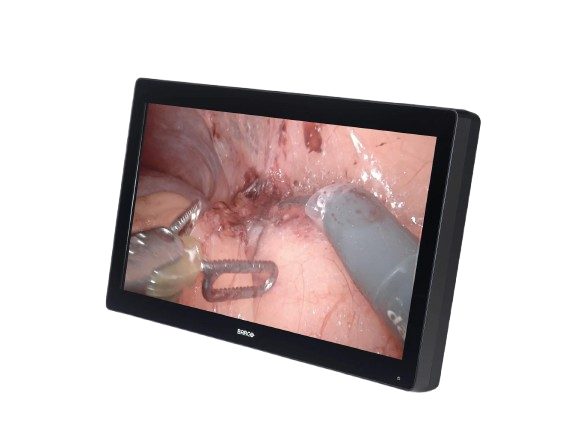

The Barco MDSC-8232 M3D is a 31-inch surgical display supporting both 2D and stereoscopic 3D imaging. It integrates Nexxis video-over-IP, delivers 4K/UHD resolution, and features ergonomic passive-glasses technology for accurate depth perception and superior surgical visualization.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
The MDSC-8232 M3D is a 31-inch 2D and 3D surgical monitor that is compatible with Barco’s Nexxis video-over-IP solution.
100% compatibility with existing Nexxis installations
The display has a built-in MNA decoder, which means that it can be seamlessly integrated into an existing Nexxis architecture, just like any other Nexxis source. In a Nexxis configuration, the monitor is compatible with the most common 3D and 2D video formats typical of modern microscopes and laparoscopic camera systems. 3D sources become part of the full integration, including support for inter-OR sharing, remote management, streaming, and recording.
3D technology as part of your digital OR
The display is based on a circular polarization technology for 3D visualization with passive glasses. Thanks to the Nexxis integration, it automatically switches between 2D and 3D modes to show the video source in its best suitable format.
Visual comfort in a wide viewing area
In 3D mode, multiple users at the same time will be able to see the image with excellent depth perception and no visual discomfort in a large viewing area. The display also provides HD and 4K image quality with high color accuracy, detailed images, and no artifacts. Near-zero latency enables optimal hand-eye coordination.
The full-glass front surface is durable and scratch-resistant, making the display easy to clean. The design in the standard VESA-100 mounting plate allows easy mounting on surgical booms and spring arms.
Features
-
31-inch 4K UHD surgical display
-
2D / 3D imaging support with passive glasses
-
Nexxis video-over-IP integration
-
Circular polarization for stereoscopic viewing
-
Multi-image support (PiP, PbP, screen clone)
-
Failover and redundancy for safety
-
Scratch-resistant full-glass front
-
Ultra-low latency video processing
-
Easy cleaning and medical-grade design
-
VESA-compatible mounting options
Technical Specifications
| Specification | Detail |
|---|---|
| Screen Technology | TFT AM LCD / IPS-PRO with LED backlight |
| Active Screen Size (Diagonal) | 31.1″ (789 mm) |
| Active Area (H × V) | 698 × 368 mm |
| Aspect Ratio | 17:9 / 16:9 |
| Resolution | 4K / 2K (4096 × 2160) / UHD (3840 × 2160) |
| Pixel Pitch | 0.1704 mm |
| Color Support | 1.07 billion colors (10-bit) |
| Color Gamut | 92% DCI-P3 / 105% Adobe |
| Viewing Angle | 178° horizontal / 178° vertical |
| Luminance | Maximum 450 cd/m²; Calibrated 360 cd/m² @ 6500K |
| Contrast Ratio | 1300:1 (typical) |
| Response Time | 20 ms (typical) |
| White Point | Native: 7200K; Calibrated: 5600K, 6500K, 9300K |
| Gamma Curve | 1.8, Video, 2.2, 2.4, DICOM |
| Keyboard | Capacitive 7-key touch keyboard |
| Video Inputs (2D) | DP 1.1, DP MST, DVI, 3G-SDI, 2× fiber SFP+ (Nexxis) |
| Video Inputs (3D) | DP, MST, DVI, 3G-SDI, 2× fiber SFP+ (Nexxis) |
| Video Outputs | 2D: 3G-SDI loop, DVI clone; 3D: DVI selectable left/right |
| Power Supply | AC 100–240 VAC / 47–63 Hz → DC +24 V / 10 A |
| Power Consumption | Maximum 190 W; Low power 52 W; Power-off 1 W |
| Dimensions (W × H × D) | 777 × 472 × 117 mm |
| Net Weight | 15.3 kg |
| Mounting Standard | VESA 100 × 100 mm & 200 × 100 mm |
| Operating Temperature | 0°C to 30°C |
| Storage Temperature | –20°C to 60°C |
| Operating Humidity | 10%–90% RH (non-condensing) |
| Storage Humidity | 5%–90% RH (non-condensing) |
| Protection Rating | IP20 (IP45 front side only) |
| Warranty | 3 years |
