New

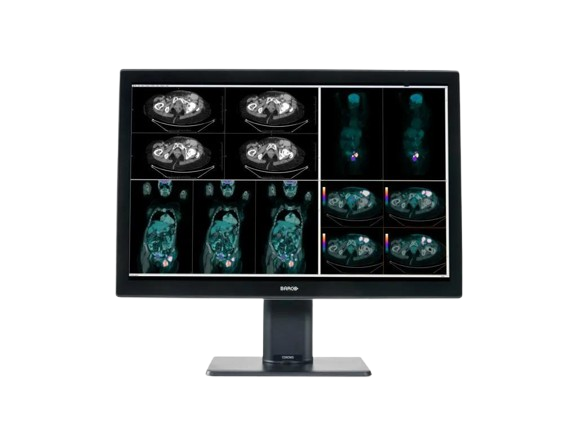

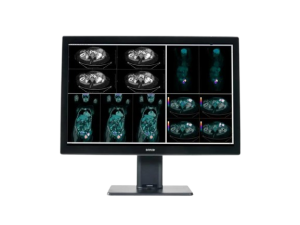

Coronis Fusion 4MP (MDCC‑4430)

$0.00

Shipped From Abroad

The Barco Coronis Fusion 4MP (MDCC-4430) is a high-fidelity medical display designed for diagnostic radiology. With a 4-megapixel resolution, wide color gamut, and image-enhancement features, it supports mammography, CT, MRI, and multi-modality imaging workflows.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Brands:: Barco-Health

Description

The Barco Coronis Fusion 4MP (MDCC-4430) delivers optimized diagnostic visualization for radiologists by combining high-quality optics with advanced processing. Its native resolution of 2560 × 1600 pixels and large active area (655 × 410 mm) provide generous screen real estate for image review. The display includes uniformity correction and Barco’s image-enhancement technologies to maintain consistency across the display. It supports multi-modality imaging in breast, vascular, and general radiology settings. With efficient design and compatibility for clinical workflows, it balances performance and ergonomics in diagnostic environments.

Key Features
  • Native 4MP resolution (2560 × 1600)

  • Active screen area: 655 × 410 mm

  • Uniformity correction to ensure brightness consistency

  • Image-enhancement tools for clarity in clinical reading

  • Wide gamut/color support (multi-modality capability)

  • Optimized for breast imaging, mammography, CT, and MRI

  • Efficient, lightweight design for diagnostic reading rooms

A brighter diagnosis

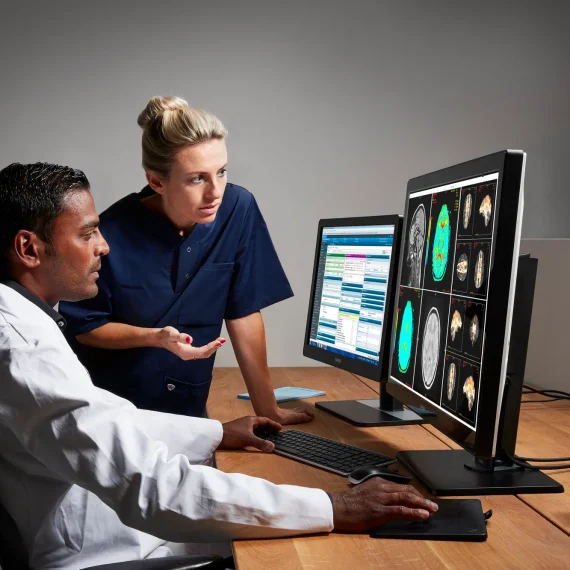

Coronis Fusion, Barco’s renowned multi-modality display for radiologists, now comes in a new, energy-efficient, and lightweight design. Bright on so many levels, Coronis Fusion has been designed to help radiologists provide care with confidence.

See more details quickly thanks to the high brightness, high contrast ratio, and best-in-class image quality. What’s more, the wide color gamut in combination with SteadyColor™ calibration technology helps you see even more colors and more details on the 30-inch screen.

Smart workflow

Designed for your comfort and to boost productivity, Coronis Fusion comes with smart image-enhancing features and workflow tools. The display’s wide viewing angle, combined with the SoftGlow™ task and wall light, helps reduce eye strain. Thanks to SpotView, radiologists can further improve detection accuracy as well as reading productivity.

Effortless quality & compliance

Like all of Barco’s medical display systems, Coronis Fusion comes with QAWeb Enterprise, a cloud-based technology for automated calibration, Quality Assurance, and compliance to ensure maximum uptime of the display with no need for human intervention.

A one-stop-shop solution

Barco medical display systems include exclusive display controllers that are validated with the latest workstations and with all major PACS applications. All components are under the full 5-year warranty (including the display backlight) for complete peace of mind.

Ensuring diagnostic confidence with MDR Class IIa

Our radiology displays are MDR-certified as Class IIa. Their product information has been reviewed and cleared by independent medical and technical experts, and is audited yearly. In other words, we ensure diagnostic confidence and peace of mind for our users.



Specifications
Category Specification
Screen Technology IPS
Active Screen Size (Diagonal) 772 mm (30.4″)
Active Screen Size (H × V) 655 × 410 mm (25.8″ × 16.1″)
Aspect Ratio 16:10
Resolution Native 4MP (2560 × 1600 pixels); Configurable to 2 × 2MP+ (1280 × 1600 pixels); 2 × 2MP (1200 × 1600 pixels)
Pixel Pitch 0.256 mm
Color Imaging / Gray Imaging Yes / Yes
Bit Depth 30-bit
Viewing Angle (H/V) 178°
Uniformity Correction Color PPU
SteadyColor Yes (with Barco Display Controller and QAWeb Enterprise 2.2+)
Ambient Light Presets / Sensor Yes / Yes
Front Sensor Yes (I-Guard, Coronis)
Maximum Luminance (Typical) 1050 cd/m²
DICOM Calibrated Luminance 600 cd/m²
Contrast Ratio 2000:1
Response Time 18 ms
Housing Color Black / White
Video Input Signals 2 × DisplayPort 1.2
Video Output Signals 1 × DisplayPort (MST)
USB Ports 1 × USB 2.0 upstream; 2 × USB 2.0 downstream; 1 × USB 2.0 downstream with high-power charging
Power Rating 100–240 Vac, 50/60 Hz, 3.6–1.6 A
Power Consumption 75 W (nominal @ 600 cd/m²); <0.5 W (hibernate/standby)
Dimensions with Stand (W × H × D) 714 × 524~624 × 240 mm
Dimensions without Stand (W × H × D) 714 × 478 × 74 mm
Dimensions Packaged (W × H × D) 800 × 650 × 295 mm
Net Weight with Stand MDCC-4430: 17.7 kg; MDCC-4430 NC: 16.3 kg
Net Weight without Stand MDCC-4430: 13.1 kg; MDCC-4430 NC: 11.7 kg
Net Weight Packaged MDCC-4430: 22.3 kg; MDCC-4430 NC: 20.9 kg
Tilt / Swivel / Pivot -5° to +25° / ±30° / N/A
Height Adjustment Range 100 mm
Mounting Standard VESA (100 mm)
Screen Protection MDCC-4430: Protective, anti-reflective glass; MDCC-4430 NC: No glass cover
Recommended Modalities All digital images except digital mammography
Certifications FDA 510(k) K191845, CE0123, CCC, INMETRO, KC, BIS, EAC
Safety Standards IEC/EN/UL/CSA 60950-1, 62368-1, 60601-1, AAMI ES 60601-1
EMI Standards IEC/EN 60601-1-2, FCC Part 15 Class B, ICES-001 Level B, VCCI
Environmental Compliance China Energy Label, EU RoHS, China RoHS, REACH, Canada Health, WEEE, Packaging Directive
Supplied Accessories User guide, Documentation disc, System sheet, Video cables, Mains cables, USB cable
Optional Accessories Graphics board, Touch pad, QA software (QAWeb)
Warranty 5 years (includes 40,000 hrs backlight warranty)
Operating Temperature 0–35°C (specs: 10–30°C)
Storage Temperature -20–60°C
Operating Humidity 20–85% RH (non-condensing)
Storage Humidity 20–85% RH (non-condensing)
Operating Pressure ≥70 kPa
Storage Pressure 50–106 kPa
