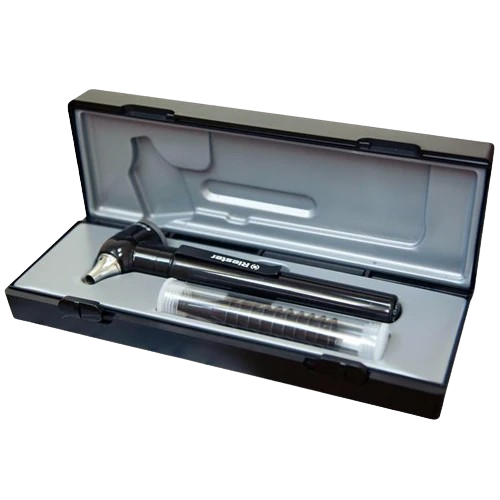

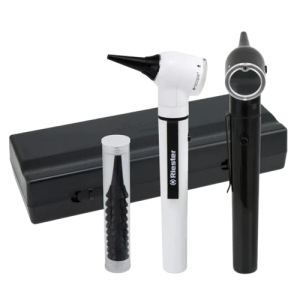

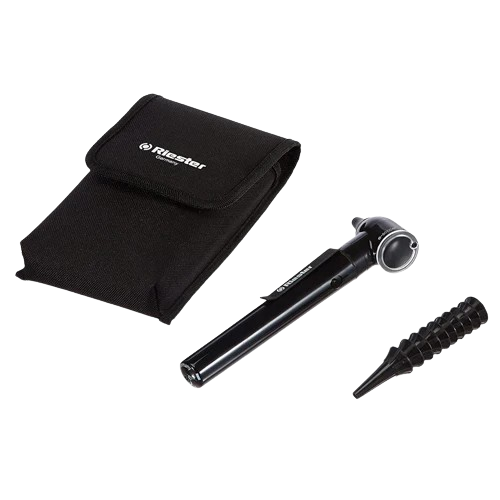

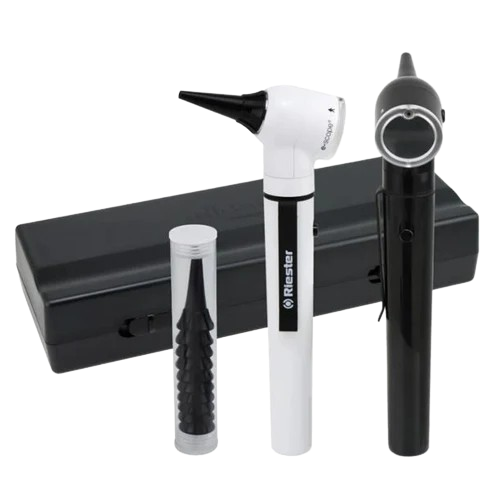

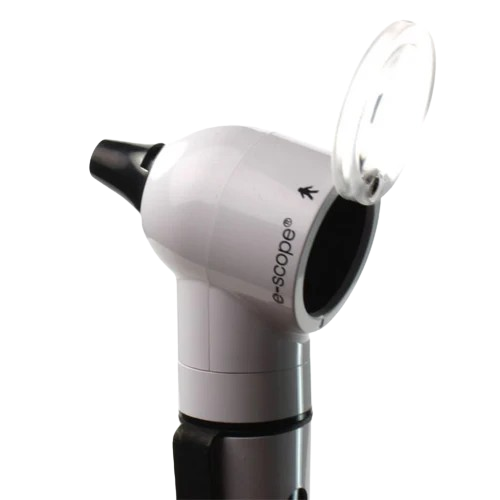

e-scope® Pocket Otoscope

Brands: Riester

~~$0.00~~

Shipped From Abroad

The e-scope® pocket otoscope is a lightweight, economical otoscope at a perfect size and weight for you to carry in your pocket all day. The otoscope has AA-size handles for use with alkaline batteries (sold separately), a pen clip to easily keep it in place, and LED or Xenon illumination. The instrument comes in a hook and loop closure case with a pack of 10 reusable specula.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Riester

Description
Reviews (0)

Description

The e-scope® pocket otoscope delivers reliable diagnostic power in a perfectly portable package. Designed for portability, its AA size handle and pen clip make it ideal for quick, professional use. It provides an optimum view with 3x magnification precision optics that pivot for instrumentation. Available in energy-efficient 3.7 V LED, offering a mean lifespan of 20,000 hours, or traditional 2.5 V Xenon illumination.

e-scope® pocket otoscope details

3.7 V LED or 2.5 V Xenon illumination
Fibre optics
3x magnification pivoting lens
Reusable or disposable ear specula
Pneumatic test connection
On/Off switch
Battery compartment and ABS synthetic material casing

Features and benefits of e-scope® otoscope

Pocket-sized otoscope with pen clip
Features 3x magnification and bi-directional swivelling lens
Runs on 2 AA batteries (sold separately)
Innovative 3.7 V LED illumination or 2.5 V Xenon illumination
High-performance fibre optic lighting

Product Details

e-scope® Pocket Otoscope

Dimensions	16.9 x 4.9 x 2.9 cm; 160 g 23 cm x 14 cm x 4.5 cm in hard case (set) 23 cm x 8.2 cm x 4.5 cm in hard case (single) 18 cm x 10.5 cm x 4 cm in pouch
3x magnification lens	The 3x magnification lens can be rotated 360 °, 180 ° for instrument interventions through the open otoscope
The lamp for e-scope® Otoscope	XL 2.5 V, 750 mA mean life span 16.5 h LED 3.7 V, 52 mA mean life span 20,000 h
Battery	2 Alkaline AA 1.5 V batteries
Ambient temperature	0 °C to 40 °C
Relative Humidity	30% to 70% noncondensing
Storage/ Transport Ambient temperature	-10 °C to 55 °C
Storage/ Transport relative Humidity	10% to 95% noncondensing

Download Brochure
