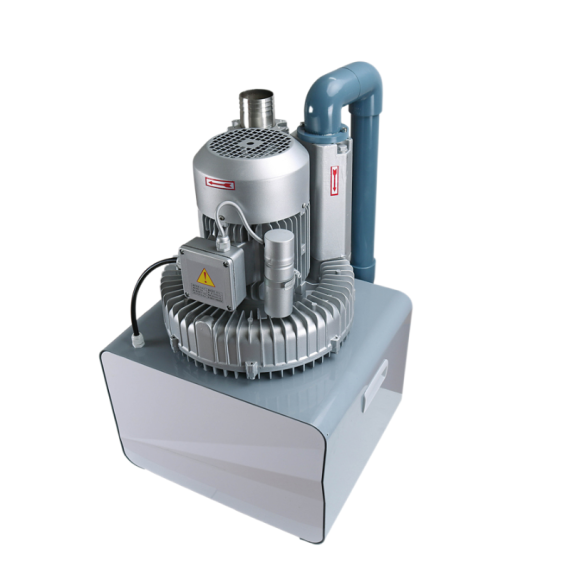

FM-1100X Central Suction Machine

The FM-1100X Central Suction Machine is engineered to meet the demands of modern dental clinics, offering powerful suction for up to seven chairs simultaneously. Its oil-free, dry pumping system ensures a hygienic environment by preventing cross-contamination and conserving water resources. With a robust 1500W motor, it delivers a suction volume of 1200 L/min and maintains a negative pressure of ≥1.7 kPa, effectively removing fluids and debris during procedures. Operating at a low noise level of 65–70 dB, it contributes to a comfortable setting for both patients and staff. The unit's advanced filtration system, featuring a metal mesh filter and quick-release interface, simplifies maintenance, making the FM-1100X a reliable and efficient choice for dental practices.

Key Features

• Supports Up to Seven Dental Chairs: Efficiently manages suction for multiple chairs, optimizing clinic workflow.

• High Suction Capacity: Delivers a suction volume of 1200 L/min with a negative pressure of ≥1.7 kPa, ensuring effective fluid removal.

• Quiet Operation: Operates at a noise level between 65–70 dB, maintaining a serene clinical atmosphere.

• Oil-Free, Dry Pumping System: Eliminates water resource loss and reduces maintenance needs.

• Advanced Filtration: Equipped with a metal mesh filter and quick-release interface for easy cleaning and maintenance.

• Durable Construction: Features a high-quality, silent motor and metal air pipes for stable, long-lasting performance.

Specifications

• Indicator light indicates working state.
• For 4~6 minutes rapidly sterilizing.
• Sterilizing temperature and time can be preset.
• Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.
• Over temperature & over pressure auto-protection.
• Safe protection of water lacking.
• Exhaust the cool air automatically.
• With three stainless steel sterilizing plates.
• The chamber of the sterilizer is made of stainless steel.
• Automatically shut off with beep reminding after sterilization.

• FreeFill - the newest filling system for liquid Denut's gutta-percha.
• Wireless - minimizing the time and materials needed to fill the channel.
• The use of the device ensures the highest quality and precision in filling the ducts.
• Wireless device 3-dimensional obturation system.
• Fantastic combination of filling with the method of vertical compaction.
• Provides excellent hermetic sealing of the root canal.
• Together, the entire main channel and side channels are filled.
• Excellent control of the honing part and filling of anatomically complex channels.
• Two mobile systems in one device (hot plugger and obturator).
• The obturator cover can be sterilized in an autoclave.
• The device is covered by the manufacturer's one-year warranty (application tips and tips for the plugger are consumable - they are not covered by the warranty).
• Technical data - charging system and batteries:
  • operating voltage - DC 3.7 V,
  • input adapter - AC 100 - 240 V, 50/60 Hz,
  • output - DC 7.5 V, 2.5 A,
  • indicator indicating the status of charging / charging,
  • time to full charge - about 1 hour,
  • two power supplies included.

• Gun - Obturation Gun:
  • heater - DC 3.7 V, 10 W,
  • temperature range - 1500C, 1800C, 2000C, 2200C (visible on the display),
  • working time with continuous use of the gun - about 120 minutes (when the battery is fully charged),
  • automatic shutdown after 5 minutes of non-use (battery saving),
  • automatic shut-off after 15 minutes of continuous operation (prevents burning of the heater),
  • ECO system (energy-saving) - temperature maintained at 1200C in order to warm up to a given temperature faster,
  • induction switch placed in the handle - switches the heating on / off depending on whether the device is held in hand or not,
  • the possibility of setting the needle in any direction (once the bent needle can be used to fill the lower or upper one).

• Plugger - obturation pen:
  • heater - DC 3.7 V, 10 W,
  • temperature range - 1500C, 1800C, 2000C, 2200C (visible on the display),
  • working time for continuous use of the plug - 60 minutes (when the battery is fully charged),
  • 3600 power button,
  • 6 directions of injection tips setting,
  • automatic shutdown after 5 minutes,
  • information about proper connection of the needle,
  • information about the damaged needle.

• Set contains:
  • gun - obturation gun - 1 piece,
  • gun stand with built-in charger - stand for gun - 1 piece,
  • plugger - obturation pen - 1 piece,
  • stand for plugger with built-in charger - stand for pen - 1 piece,
  • injection needles - gun needle - 3 pieces,
  • pen tip - pen tip - 4 pieces,
  • the key for injection needles - adapter - 1 piece,
  • pusher for hot gutta-percha - 2 pieces,
  • thermal casings - heat insulator - 2 pieces,
  • cleaning brush - brush - 1 piece,
  • power supply - 2 pieces,
  • gutta-percha - 20 pieces,
  • instruction - 1 piece.

• There is a possibility to buy tips for the plugger:
  • set - 4 sizes after the play,
  • size F - white (thin),
  • FM size - yellow,
  • size M - red,
  • ML size - black.

• Long functional life
• Sturdy design
• Can be operated without power
• Easy operations
