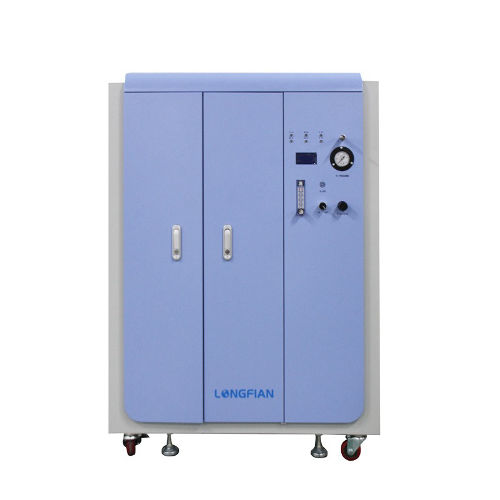

High Pressure Oxygen Concentrator

Features

• High pressure oxygen concentrator for small hospitals
• Manufactured by Longfian Scitech Co., Ltd.
• Thomas compressor for reliable performance
• High efficiency three-tower adsorption system for durability
• Pressure gauge on site for flexible adjustment
• Small and compact design for easy movement during emergencies
• Automatic dehydrator/refrigerated air dryer included
• Available models: JAY-10-4.0, JAY-15-4.0, JAY-20-4.0
• Flow rate options: 1-10L/min, 1-15L/min, 1-20L/min
• Oxygen purity of 93% (+3%)
• Outlet pressure range: 20-60 PSI (0.14-0.4Mpa)
• Low sound level of ≤ 50dB
• Net weight: 90kg (JAY-10-4.0), 118kg (JAY-15-4.0)
• Power consumption: ≤ 1250W (JAY-10-4.0), ≤ 2000W (JAY-15-4.0, JAY-20-4.0)
• Input frequency options: 50Hz; 60 Hz
• Input voltage options: AC 230V±10%, AC 110V ±10%

The Longfian Continuous Flow Portable Oxygen Concentrator is engineered for patients requiring a steady and uninterrupted oxygen supply. With a flow rate ranging from 1 to 7 L/min and an oxygen concentration of 93% ± 3%, it ensures consistent and effective oxygen therapy.​

Weighing 6 kg and measuring 220×280×310 mm, this device is suitable for both home and travel use. It features a robust design with an outlet pressure of 6–10 PSI, accommodating various respiratory needs. The concentrator operates on AC power and offers optional DC power supplies for in-car use, enhancing its versatility.

Key Features:

• Continuous Flow Delivery: Adjustable flow rate from 1 to 7 L/min.
• High Oxygen Concentration: Delivers 93% ± 3% purity.
• Robust Design: 6 kg weight and 220×280×310 mm dimensions for stability.
• Outlet Pressure: 6–10 PSI to meet various therapeutic needs.
• Versatile Power Options: Compatible with AC and optional DC power supplies.
• Safety Features: Equipped with alarms and safety mechanisms for patient well-being.

The Longfian JAY-3EW is a lightweight and energy-efficient oxygen concentrator designed for home use. Weighing just 12 kg and operating at a low noise level of ≤38 dB, it ensures a peaceful environment for users. With a flow rate ranging from 0.5 to 3 L/min and an oxygen concentration of 93% (±3%), it effectively meets the needs of individuals requiring supplemental oxygen therapy.​

Key features include:

• Compact Design: Dimensions of 335×215×450 mm for easy placement.

• User-Friendly Interface: Easy-to-read LCD display and simple controls.

• Mobility: Equipped with wheels and a handle for effortless movement.

• Safety Alarms: Alerts for power failure, high/low pressure, and low oxygen concentration.​

Suitable for individuals with conditions like cervical spondylosis, altitude sickness, cardiovascular diseases, and for pregnant women requiring oxygen therapy.

The JAY-10-4.0 is a high-pressure oxygen concentrator designed to provide a consistent oxygen supply with adjustable flow rates ranging from 1 to 10 L/min and an outlet pressure of 20–60 PSI (0.14–0.4 MPa). Its compact design and mobility make it suitable for various medical settings, including intensive care units and operating rooms. The unit features a high-efficiency three-tower adsorption system, ensuring durability and consistent oxygen purity of 93% (±3%).

Key Features

• Flow Rate: 1–10 L/min
• Oxygen Concentration: 93% (±3%)
• Outlet Pressure: 20–60 PSI (0.14–0.4 MPa)
• Power Consumption: ≤1250W
• Sound Level: ≤50 dB
• Net Weight: 90 kg
• Alarms:
  • Power failure alarm
  • High and low pressure alarm
  • Low oxygen concentration alarm: Blue light (>82%), Red light (<82%)
• Mobility: Equipped with wheels for easy transportation
• Applications:
  • Connects with ventilators and anesthesia machines in ICU and operating rooms
  • Suitable for hospitals with up to 100 beds
  • Compatible with hyperbaric oxygen chambers and nanobubble generators

The JAY-20-4.0 high-pressure oxygen concentrator is engineered for medical environments that demand higher oxygen flow rates. Delivering 1 to 20 L/min at an outlet pressure of 20–60 PSI (0.14–0.4 MPa), this unit ensures a steady and pure oxygen supply with a concentration of 93% (±3%). Its durable construction and advanced features support continuous operation in demanding settings such as intensive care units and operating rooms.

Key Features

• Flow Rate: 1–20 L/min
• Oxygen Concentration: 93% (±3%)
• Outlet Pressure: 20–60 PSI (0.14–0.4 MPa)
• Power Consumption: ≤2200W
• Sound Level: ≤60 dB
• Net Weight: 118 kg
• Alarms:
  • Power failure alarm
  • High and low pressure alarm
  • Low oxygen concentration alarm: Blue light (>82%), Red light (<82%)
• Mobility: Equipped with wheels for easy transportation
• Applications:
  • Connects with ventilators and anesthesia machines in ICU and operating rooms
  • Suitable for hospitals with up to 100 beds
  • Compatible with hyperbaric oxygen chambers

Features

• 1.3ATA(4psi)operating pressure .
• 2 zipper seal for easier entrance .
• Cotton chamber protection cover , to avoid dirty and easy to wash .
• Most popular model for home treatment or commercial usage .Emergency valve - To speed the depressurization in emergency .
• Easy Operation - One people can operate it without assistance .
• Internal Pressure Gauge - User can observe the pressure while inside the chamber .
• Internal metal frame - Hold the shape when deflated
