RCS-100 Medical Camera System with General Lens
$0.00
Shipped From Abroad
The RCS-100 with general lens can be utilised for a general initial screening, or more specifically for the assessment of the mouth and throat.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description

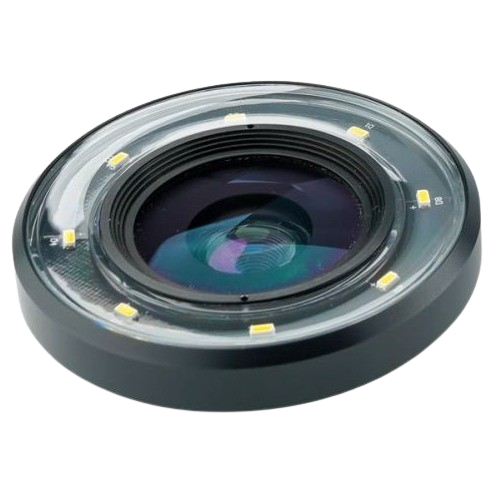

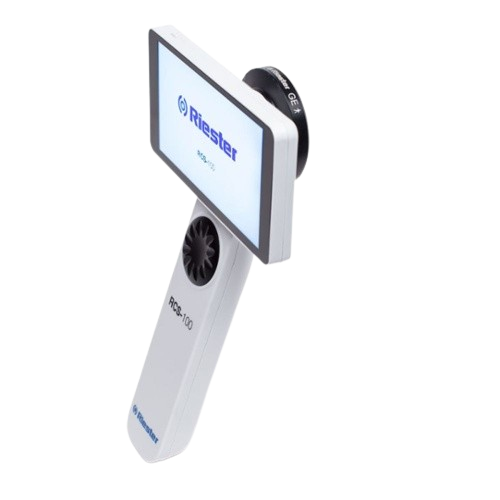

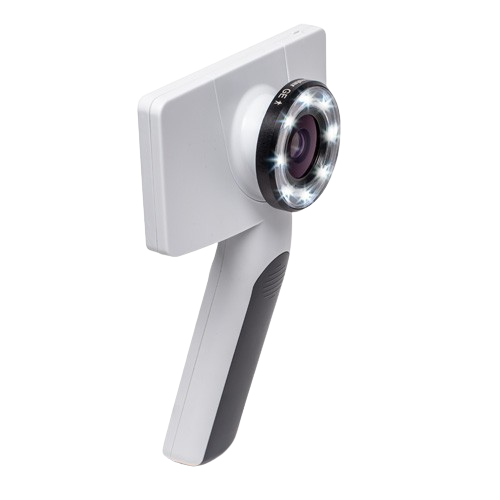

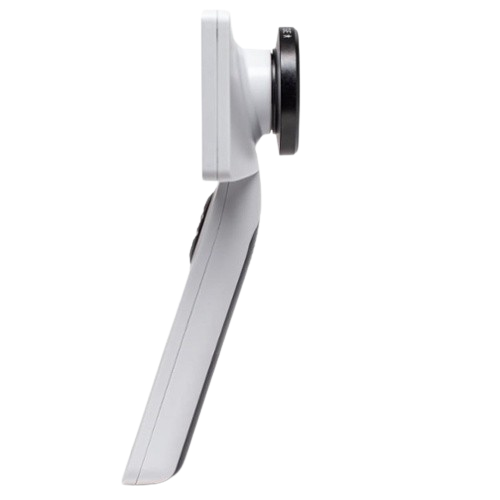

The Riester RCS-100 Medical Camera System, fitted with the general (GE) lens, delivers versatile, high-quality imaging for general clinical examinations. The GE lens supports a focus range of 30 mm to 4 m and combines 2× optical magnification with 4× digital zoom and a 78° field of view. The 5″ full-HD touch display and ergonomic rotary wheel enable intuitive, one-hand operation. With a rechargeable Li-ion battery delivering 3.5 hours of video time and 16 GB of internal memory, the system is ideal for documentation, telemedicine, and diagnostic workflows.
Key Features
-
General-purpose imaging for the mouth, throat, and wide anatomical areas
-
2× optical magnification + 4× digital zoom
-
78° field of view for broad coverage
-
Visible white LED illumination (5500 K)
-
Focus range from 30 mm to 4,000 mm
-
High-resolution 8 MP CMOS sensor
-
5″ 1280 × 720 touchscreen display
-
One-hand rotary wheel for light and focus control
-
16 GB internal storage for images and videos
-
Up to 3.5 hours of video runtime on Li-ion battery
-
Automatic focus (when using general lens)
-
Bayonet connector for fast lens exchange
-
Multilingual interface for global clinical use
Specifications
| RCS-100 General Lens |
|---|
| Dimensions | 60.5 mm x 60.5 mm x 19.0 mm 23.82 in x 23.82 in x 0.75 in |
| Weight | 66.4 g (2.34 oz) |
| F/# (focal length/width) | 2.0 |
| Field angle | 78° |
| Depth of field scope | 30 mm – 4 m 1.18 – 157.48 in |
| Lighting source | Natural light LED |
| LED colour temperance | 5500 K |
| RCS-100 |
|---|
| Size | 225 mm x 135 mm x 45 mm |
| Weight | 292.0 g |
| Focus | Automatic / Manual |
| Image format | JPEG |
| Video format | MP4 |
| Adapt input | 100 – 240 VAC, 50/60 Hz, 0.3 A |
| Adapt outnput | 5 VDC, 2 A |
| USB | OTG and type-C USB |
| Extend memory (OPT) | 16 GB Wi-Fi SD car |
| RAM | 2 GB LPDDR3 |
| ROM | 16 GB |
| CMOS sensor resolution | Total number of pixels: 3296 (H) x 2512 (V) approx. 8.28 M pixels Number of effective pixels: 3296 (H) x 2480 (V) approx. 8.17 M pixels Number of active pixels: 3280 (H) x 2464 (V) approx. 8.08 M pixels |
| Battery | 3.6 V, 2600 mAh, Li-ion battery (type 18650) Video 3.5 hours (fully charged battery at 25 °C ambient temperature) |
