New

ENT

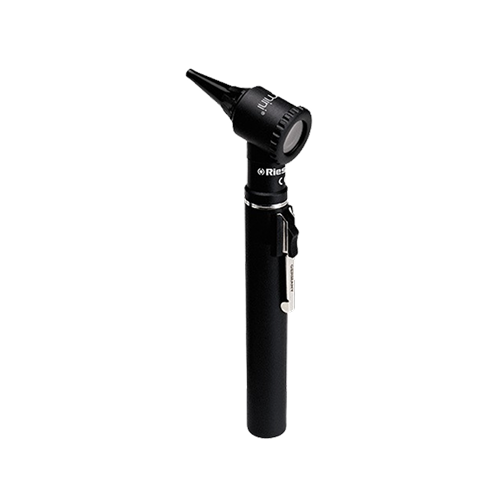

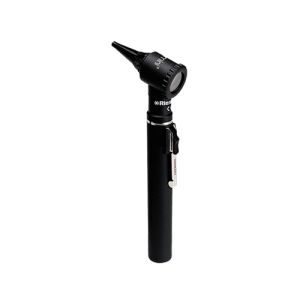

ri-mini® otoscope

Brands: Riester

~~$0.00~~

Shipped From Abroad

The ri-mini® Otoscope is a compact, cost-effective diagnostic instrument ideal for clinics. It features Fibre-Optics (F.O.) with 2.5 V Xenon illumination for cool, daylight-like light, a 2.5x magnifying lens, and a connection for pneumatic otoscopy.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Riester

Description
Reviews (0)

Description

The ri-mini® Otoscope is designed for exceptional cost-effectiveness and appeal in medical practice. It utilizes Fibre-Optics combined with a powerful 2.5 V Xenon lamp to ensure optimal light transmission and a cool examination light. The instrument head is secured to the handle with a screw fitting and made from extremely impact-resistant, glass-fibre reinforced plastic.

Features and benefits of ri-mini® otoscope

ri-mini® with 2.5 V Xenon illumination.
Fibre-optics for optimal light beam and transmission, combined with the lamp to produce a cool examination light similar to daylight, providing a comfortable experience for the patient.
Removable magnifying lens with 2.5x magnification.
Option to insert external instruments when the magnifying lens is removed.
Screw fitting for secure attachment to the handle.
Sturdy adjustment ring to position the instrument head at the ideal angle on the handle.
Sealed system for performing pneumatic otoscopy.
Extremely impact-resistant casing made of glass-fibre reinforced plastic.
Easy lamp replacement at the base of the instrument head.

ri-mini® otoscope details

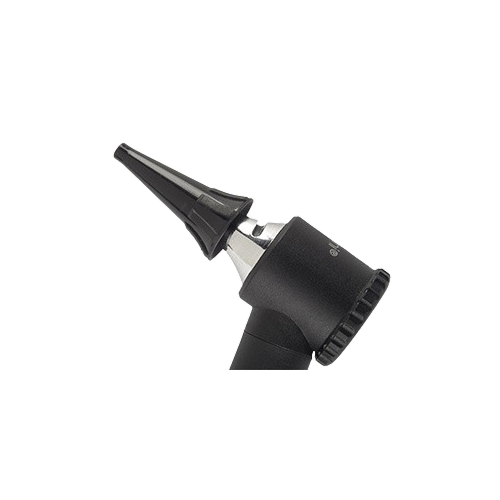

The ear specula, removable by turning

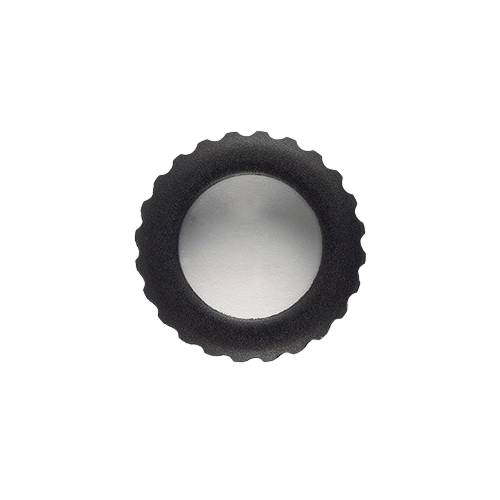

magnification pivoting lens
Pneumatic test connection
On/Off switch
Battery compartment

Product Specifications

ri-mini® Otoscope

Dimensions	Otoscope head: 56 mm height x 28 mm wide Otoscope battery compartment: 107.30 mm height, 20 mm in Ø 23 cm x 14 cm x 4.5 cm in hard case (set) 23 cm x 8.2 cm x 4.5 cm in hard case (single)
Magnification lens	The 2.5x magnification lens
The lamp for ri-mini® otoscope	XL, 2.5 V, 750 mA, average life span 16.5 h
Battery	2 Alkaline AA 1.5 V batteries.
Ambient temperature	0 °C to 40 °C
Relative Humidity	30% to 70% non-condensing
Storage/ Transport Ambient temperature	-10 °C to 55 °C
Storage/ Transport relative Humidity	10% to 95% non-condensing

Download Brochure
