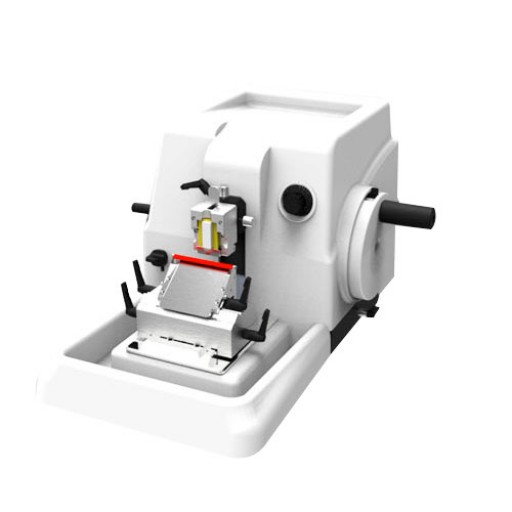

AMR 400 Manual Rotary Microtome

$0.00

Shipped From Abroad

The AMR 400 is a manual rotary microtome engineered for high-precision sectioning of biological specimens. It produces reproducible, ultra-thin slices for microscopic examination in histology and pathology labs.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Description

This mechanical microtome enables hand-driven sectioning of tissue blocks by rotating the handwheel to advance the specimen toward a blade. It offers adjustable section thickness from very thin (microns) to thicker cuts, supports both low and high-profile disposable blades, and includes built-in safety and ergonomic design features. It is widely used in clinical pathology, research histology, veterinary labs, and teaching facilities to prepare tissue sections that can be stained and analyzed for disease diagnosis or scientific study.

Features of AMR 400 Manual Rotary Microtome
  • Spacious section waste tray
  • Ergo-handwheel  handle
  • Convenient storage area on top of the instrument
  • Disposable blade holder with integrated safety finger protection guard
  • Two handwheel locks: the handwheel can be locked at any position
  • Distortion-resistant  base plate  ensures  optimum overall stability
  • Both low & high-profile disposable blades are usable
  • Two  types  of specimen clamp: standard specimen clamp  and“C” type specimen clamp
  • Retraction  function:approx 220μm,could be deactivated
  • Extremely smooth-running force  compensation system
Specifications of AMR 400 Manual Rotary Microtome
  • Section thickness setting: Oμm~60μm adjustableOμm~2μm, in 0.5μm  increments;2μm~10μm, in 1μm   increments;

    10μm~20μm, in 2μm  increments;

    20μm~60μm, in 5μm increments;

  • Trimming thickness:10,50μm  adjustable
  • Retraction range:220 μm, could be deactivated
  • Maximum specimen size:40×50×30 mm or standard cassette
  • Specimen vertical stroke:59  mm
  • Specimen horizontal stroke:28  mm
  • Specimen holder adjusted system: Horizontal  orientation:±8°
  •                                                                         Vertical orientation:±8°
  • Blades  holder  base  repositioning(left-right):50mm
  • Advanced feed  by rotating the left-hand wheel a circle around:0.275mm
  • Dimensions: Width: 417 mm(276mm without handwheel)

Depth:525 mm

Height:280 mm



Additional information

Dimensions 52.5 × 41.7 × 28.0 cm
