New

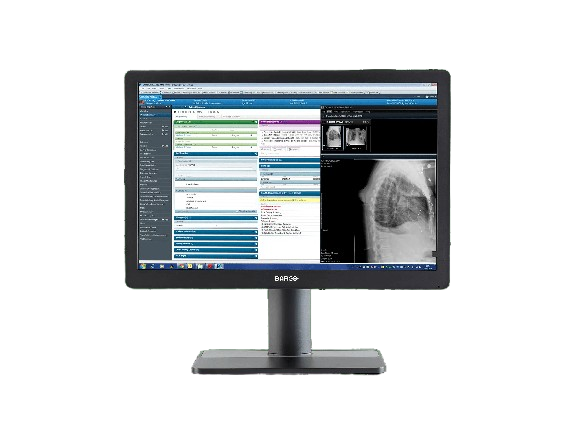

Eonis 24″ (MDRC‑2424)

$0.00

Shipped From Abroad

The Barco MDRC-2424 Eonis 24″ display delivers accurate, consistent medical images with full HD resolution, wide viewing angles, and front sensor technology for stable brightness. Designed for clinical environments, it ensures reliability, hygiene, and effortless quality assurance monitoring.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Brands:: Barco-Health

Description



The Eonis 24” brings reliable, DICOM-compliant images to a broad palette of imaging applications, including EMR. It combines consistent image quality and an attractive, versatile design with effortless quality assurance.

Easy collaboration with consistent images

Eonis presents sharp, bright images. The display’s unique front consistency sensor automatically aligns the image quality every time the display is switched on. The Eonis 24” can be used for consulting radiology and PACS images, as well as clinical review and consultation.

Result? Consistent images that make collaboration between specialists easier. Discuss images with colleagues at multiple locations, knowing that everyone is seeing identical images.

Automated quality assurance

Eonis 24” comes with the cloud-based QAWeb Enterprise software, an online service for automated calibration, quality assurance, and asset management.

Praised in hospitals around the world, QAWeb Enterprise allows healthcare IT and PACS administrators to centrally and remotely manage image quality across the healthcare organization, at the click of a button.

Fit for clinical review

Barco’s Eonis display features multiple mounting and interface options, including a VESA mount. The user-friendly height, tilt, and pivot adjustments of the base allow the monitor to be positioned for maximum comfort.

Like every Barco clinical review display, the Eonis 24” complies with international medical and patient safety standards.

Variants
  • MDRC-2424 (Option SNIB): standard brightness, no cover, no touchscreen, internal power supply, black housing
  • MDRC-2424 (Option STIB): standard brightness, no cover, touchscreen, internal power supply, black housing
  • MDRC-2424 (Option HNIB): high brightness, no cover, no touchscreen, internal power supply, black housing
  • MDRC-2424 (Option HTIB): high brightness, no cover, touchscreen, internal power supply, black housing
  • MDRC-2424 (Option HNEW): high brightness, no cover, no touchscreen, external power supply, white housing
  • MDRC-2424 (Option HPEW): high brightness, protective cover, no touchscreen, external power supply, white housing
  • MDRC-2424 (Option HTEW): high brightness, no cover, touchscreen, external power supply, white housing

Barco’s Eonis display features multiple mounting and interface options, including a VESA mount. The user-friendly height, tilt, and pivot adjustments of the base allow the monitor to be positioned for maximum comfort.

Like every Barco clinical review display, the Eonis 24” complies with international medical and patient safety standards.

A ecolabel for Eonis 24”

The Eonis 24” has been subjected to Barco’s ecoscoring protocol and has received an A rating. Some key factors that contributed to this rating are:

  • High energy efficiency
  • Automatic standby mode when the device is not in use
  • Packaging optimized for transport on standard pallets
  • 100% halogen-free PCBs, cables, and plastics
  • Unpainted housing, plastics compatible for recycling
Key Features
  • 24-inch LED-backlit display with 2MP (1920×1200) resolution

  • Front sensor ensures consistent brightness and color accuracy

  • Wide viewing angles for multi-user collaboration

  • Hygienic, easy-to-clean design with optional protective cover

  • QAWeb software support for remote quality assurance

  • Adjustable ergonomic stand with tilt, swivel, and height settings

  • Energy-efficient and medical-grade certified (EN60601-1 compliant)

  • Multiple connectivity options, including DVI and DisplayPort

Technical Specifications
Specification Details
Screen Size 24″ (609.6 mm diagonal)
Resolution 1920 × 1200 (WUXGA)
Screen Technology ADS (Advanced Display Solution)
Aspect Ratio 16:10
Luminance 250–300 cd/m² (typical)
Contrast Ratio 1000:1
Viewing Angle 178° horizontal / 178° vertical
Pixel Pitch 0.27 mm
Color Support 16.7 million colors
Inputs DVI-D, DisplayPort
Power Supply Internal or external (depending on model)
Power Consumption 35 W (typical)
Mounting 100 × 100 mm VESA
Dimensions (W×H×D) 561 × 400 × 200 mm (with stand)
Weight 6.2 kg
Certifications CE, UL, FCC, EN60601-1
Operating Temperature 0°C – 35°C
Compliance RoHS, WEEE
