Uzumcu ML-40L Examination Lamp

Examination Lamps are designed for Medical examination and interventions by different connections and movement options.

• Advanced LED technology to fulfill lighting requirement of any kind of surgery and examination.
• Well-focused lighting with LED bulbs connected to specially developed reflector.
• Technology not requiring maintenance during the lifetime of bulb.

• Head can be positioned in required area and can be rotated 360-degree thanks to its spiral body structure.
• Modern and stylish design.

• Cleaning and disinfection solution-proof flat and smooth surfaces.

• Tailor-made solutions with mobile and rail type options

Click Here To Download Catalogue

Click Here To Download Catalogue

• To avoid rocking and swinging movements, the height-adjustable combined multi-function examination tables are manufactured with precision double square guides. This means that the height adjustment takes place without lateral offset.
• With manual height adjustment, the optimum transmission ratio (i=10mm/revolution) of the maintenance-free gearbox ensures smooth, quick and easy operation without great effort, even with heavy patients (up to 200 kg).
• With hydraulic height adjustment, the hydraulics are operated by the centrally installed foot pump. Of course, the height adjustment can also be carried out with heavy patients (up to 200 kg) without any great effort. To be able to operate the hydraulics from both sides, an additional foot lever can be fitted. This is available at an extra charge (Article No.: FPH-10).
• With electric height adjustment, the maintenance-free and extremely quiet electric motor used is controlled by a hand switch (alternatively - at no extra charge - by a foot switch). The adjustment system is equipped with a button lock. Motor connection values (each): 230V, 50/60 Hz, 3.7A, 850W, IPX4, v=11mm/s, 10,000N.
• The stability and robustness is achieved by the gusset plates in the frame corners.
• The crossbars of the flat base construction, which are always chrome-plated and fitted with levelling feet, are more resistant to external influences (e.g. vacuum cleaner impacts etc.) than a plastic-coated version.
• The upholstered frames are chrome-plated.
• The thickness of the three upholstery segments (head, middle and foot sections) is 64 mm each.
• There are cutouts in the upholstery and upholstery frame at the foot end, where the stainless steel tray included in the scope of delivery, dimensions 300 x 200 x 65 mm (L x W x H) is located.
• Adjustment of the head, middle and foot sections is continuous. They are locked in place using clamping handles with clamping rod mechanisms.

• High LED technology fulfilling lighting requirements of any kind of operation.
• Maximum lighting level by single button.
• LED bulbs of the lamp may be changed individually and have 50.000 hours of lifetime.

• Head design with low aerodynamic resistant protecting laminar flow of surgical space.

• Sensor technology enabling automatic light off of related LED sections and preventing formation of shade on the lighting area when faced with a barrier.
• Sustainable functionality for endoscopic and minimally invasive surgical procedures by a single light function (endolight function).
• Adjustable color temperature between 3500-5000 °K.
• LCD colour touchscreen control panel controlling all functions.

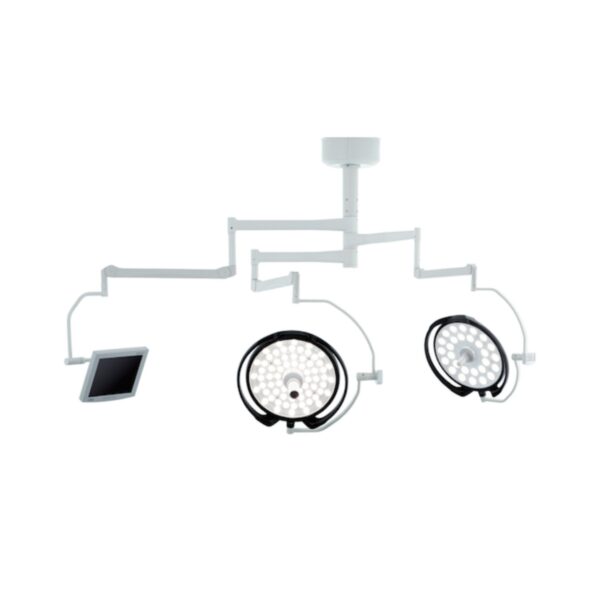

• Camera and medical monitor practically integrable with the lamp head for training purposes. It enables monitoring and recording operations.
• Manual focus function can be adjusted from the handle or the control panel.

• 4.3” LCD touchscreen and membrane control panel with led indicators are avaliable for all lamp heads.
• Model names with “A” refer to Analog membrane control panel and with “D” refer to Digital touchscreen control panel.

• Diameter of lighthead: Ø650 mm (Main Lighthead x1), Ø440 mm (Satellite Lighthead x1)
• Illumination power, in 1 m: 160.000 Lux (Main Lighthead x1 and 120.000 Lux(Satellite Lighthead x1)
• Color temperature: 3500 K - 5000 K(Main Lighthead x1) and 3500 K - 5000 K(Satellite Lighthead x1)
• Color rendering index, Ra CRI: 96% (Main Lighthead x1) and 96%(Satellite Lighthead x1)
• Dimming Range: % 1 – 100(Main Lighthead x1) and % 1 – 100(Satellite Lighthead x1)
• Adjustable focus diameter: 120 – 300 mm(Main Lighthead x1) and 120 – 300 mm(Satellite Lighthead x1)
• Temperature increase in surgical area: < 0,5°C(Main Lighthead x1) and < 0,5°C(Satellite Lighthead x1)
• Number of LED modules: 68(Main Lighthead x1) and 28(Satellite Lighthead x1)
• Lifetime of LED: 50.000 hour(Main Lighthead x1) and 50.000 hour(Satellite Lighthead x1)
• IP: IP 54(Main Lighthead x1) and IP 54(Satellite Lighthead x1)

Click Here To Download Catalogue

Mobile operating light features high LED technology to fulfill the lighting requirements of any kind of operation and allows for maximum lighting level by a single button. Its battery system runs automatically in case of electricity failure and provides continuous energy for 2.5 hours, while its multi-functional control panel allows for monitoring of battery status and adjusting lamp functions.

• Battery system running automatically in case of electricity failure and providing continuous energy for 2,5 hours (LD-5MB).
• Multi-functional control panel for monitoring battery status and adjusting lamp functions.

• High LED technology fulfilling lighting requirements of any kind of operation.
• Maximum lighting level by single button.
• LED bulbs of the lamp may be changed individually and have 50.000 hours of lifetime.

• Head design with low aerodynamic resistant protecting laminar flow of surgical space.

• Sensor technology enabling automatic light off of related LED sections and preventing formation of shade on the lighting area when faced with a barrier.
• Sustainable functionality for endoscopic and minimally invasive surgical procedures by a single light function (endolight function).
• Adjustable color temperature between 3500-5000 °K.

LCD colour touchscreen control panel controlling all functions

Main Lightheads (×1)

• Diameter of light head: Ø440 mm

• Illumination power, in 1 m: 120.000 Lux

• Color temperature: 3500 K – 5000 K

• Color rendering index, Ra CRI:96%

• Dimming Range: % 1 – 100

• Adjustable focus diameter:120 – 300 mm

• Temperature increase in surgical area:< 0,5°C

• Number of LED modules:28

• Lifetime of LED:50.000 hour

• IP: IP 54
